The ROE Linx series are end-of-life

LINX DISCONTINUED

The ROE Visual Linx series is discontinued.  Please contact us to discuss alternative replacement panels.

Contact ROE Visual

Linx flexible LED Curtains create a lightweight and transparent indoor LED display that offers wide viewing angles, excellent image integrity and color uniformity. All contained in a lightweight and firm structure. With their exceptional flexibility the Linx LED units can be curved in any angle.

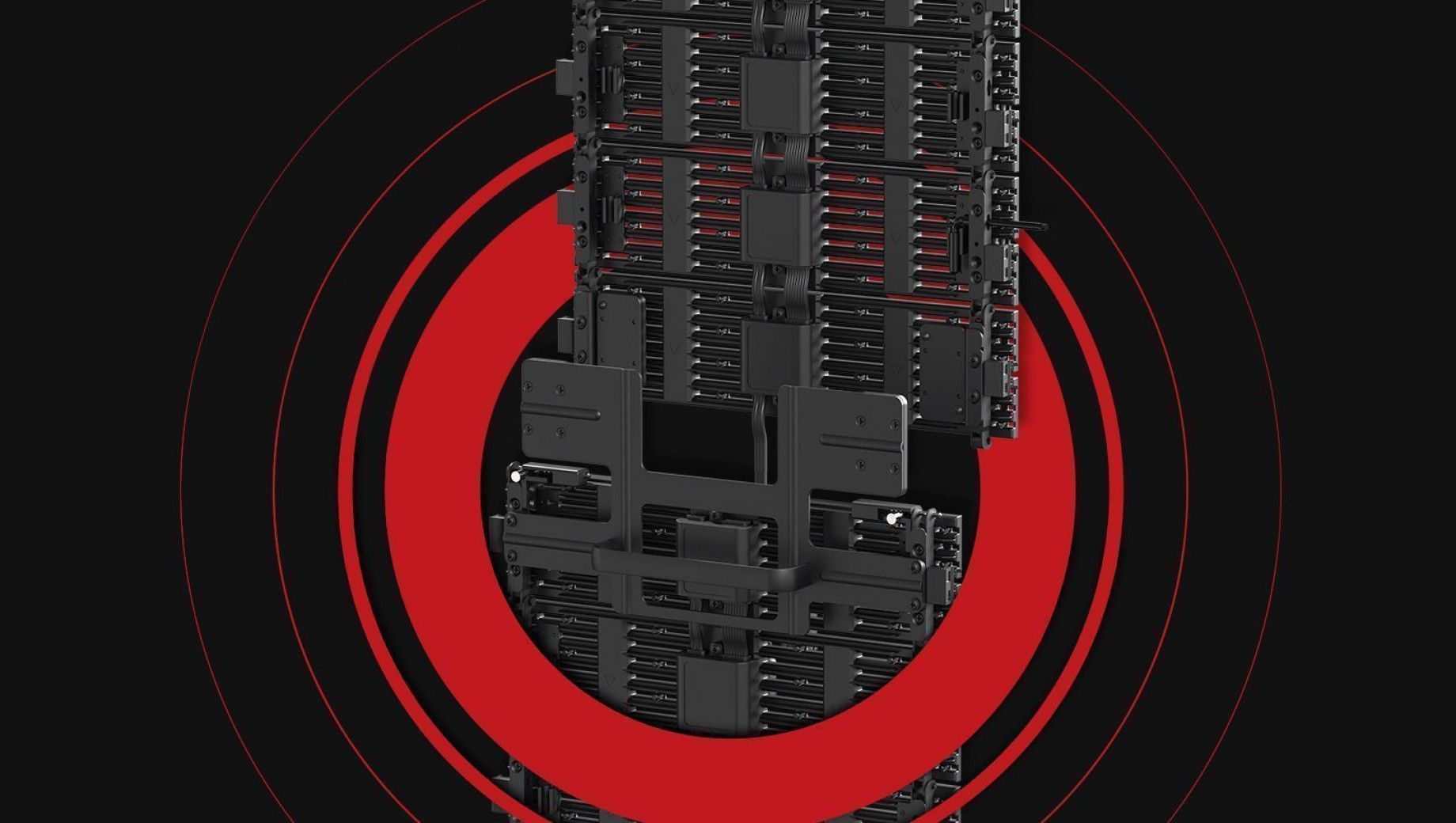

Linx Magnetic Assembly

Magnetic Assembly

Linx modules are fitted with magnetic contracts for fast, easy and accurate panel positioning.

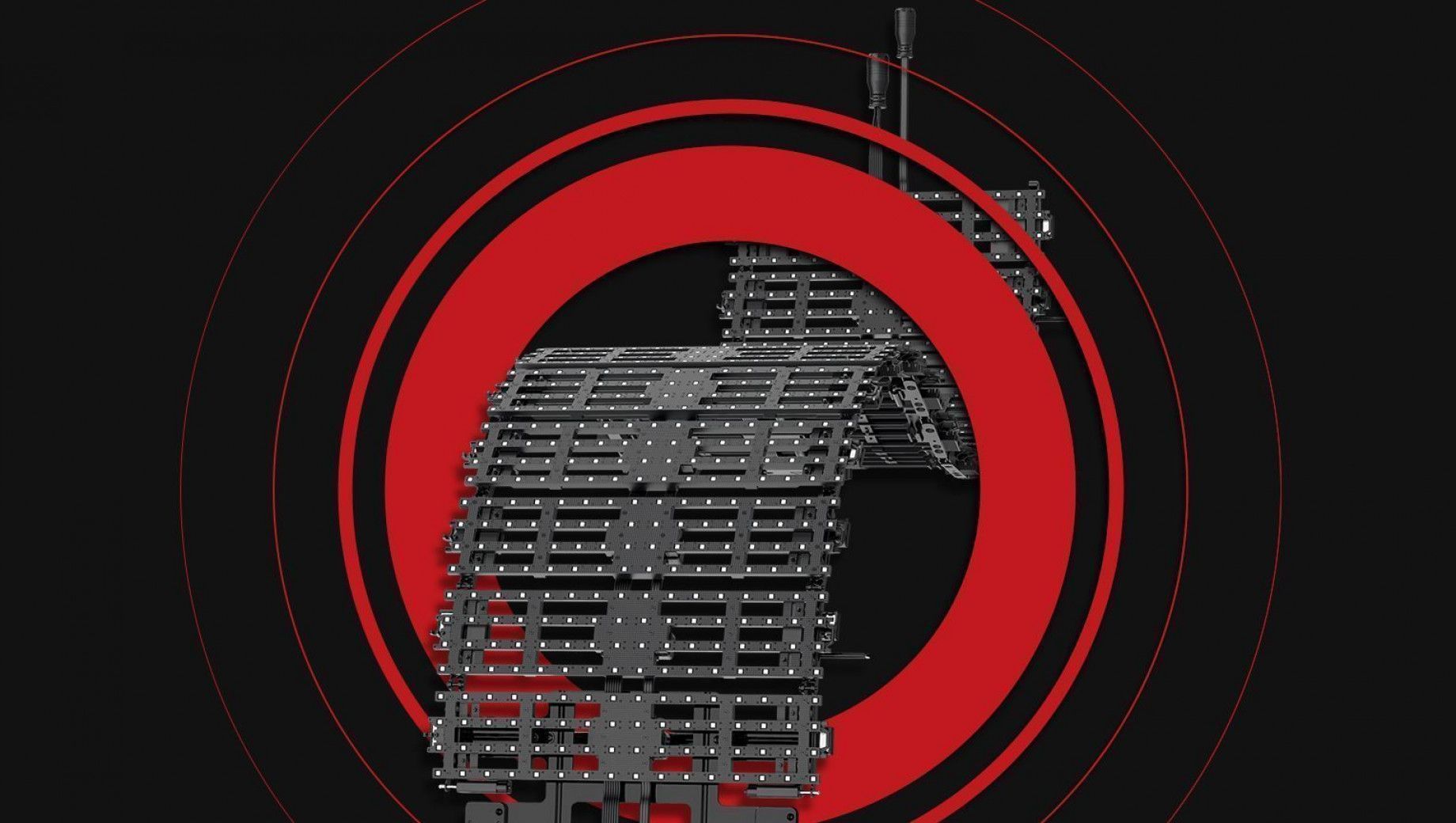

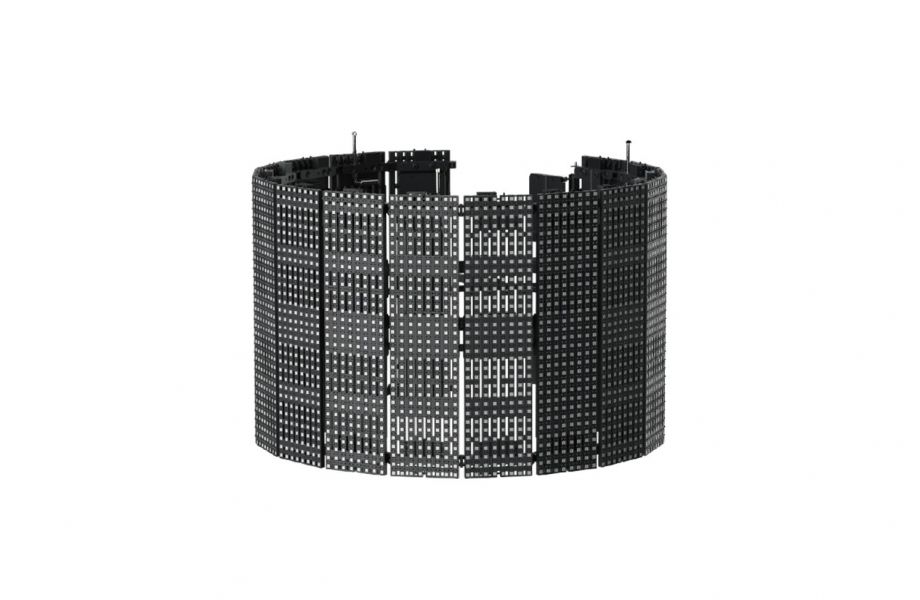

Linx Ultra Flexible

High Flexibility

Creativity is king with Linx. It's great flexibility allows designers and creatives an LED platform that creates arches, circles, waves, a straight wall with an end flip and other interesting configurations.

Linx Ultra Thin

Ultra Thin

Linx LED panels are very thin, making them unobtrusive once installed. The flat design also requires little installtion space.

Linx Transparent

Transparant design

The Linx LED panels offers a 52% transparency, which is ideal to create stunning see-through effects.

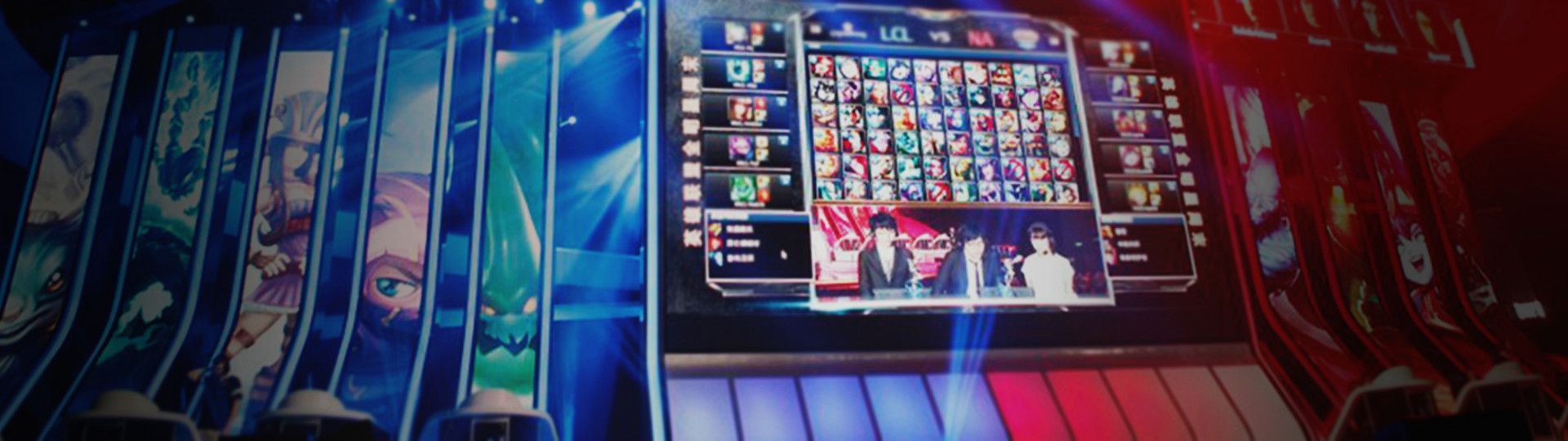

Game Show

Linx

Long layers of Linx were used to create the flowing design for this game show, making maximum use of the high flexibility of the LED panels.

Downloads

Specs

Download All Specs
Linx9
Linx12
Linx18
Linx25
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Linx9
  • 9.375mm
  • SMD 3535 White
  • 3500nits
  • 300mm x 1200mm x 52mm
    11.8” x 47.24” x 2.05”
  • 32 x 128
  • 4.8kg | 10.58lbs
  • 160W / 80W
  • 546 / 251
  • 18%
  • 120°
  • 140°
  • 3840Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • Outdoor
  • ETL, TÜV
  • 15 panels
  • Linx12
  • 12.5mm
  • SMD 3535 White
  • 3500nits
  • 300mm x 1200mm x 52mm
    11.8” x 47.24” x 2.05”
  • 24 x 96
  • 4.7kg | 10.36lbs
  • 160W / 80W
  • 546 / 251
  • 27%
  • Rear
  • 120°
  • 140°
  • 3840Hz
  • 16bit
  • 1/3
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • Outdoor
  • CE, ETL
  • 15 panels
  • Linx18
  • 18.75mm
  • SMD 3535 White
  • 3500nits
  • 300mm x 1200mm x 52mm
    11.8” x 47.24” x 2.05”
  • 16 x 64
  • 3.6kg | 7.94lbs
  • 160W / 80W
  • 546 / 251
  • 38%
  • 120°
  • 140°
  • 3840Hz
  • 16bit
  • Static
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • Outdoor
  • ETL, TÜV
  • 15 panels
  • Linx25
  • 25mm
  • SMD 3535 White
  • 2500nits
  • 300mm x 1200mm x 52mm
    11.8” x 47.24” x 2.05”
  • 12 x 48
  • 2.4kg | 5.29lbs
  • 120W / 60W
  • 409 / 188
  • 52%
  • Rear
  • 120°
  • 140°
  • 3840Hz
  • 16bit
  • Static
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • Outdoor
  • CE, ETL
  • 15 panels
Compare products
Comparison
<< product.title >>
  • Title
Linx Application

Application Fields

  • Concert
  • Auto Show
  • Indoor Event
  • Outdoor Event

Accessories

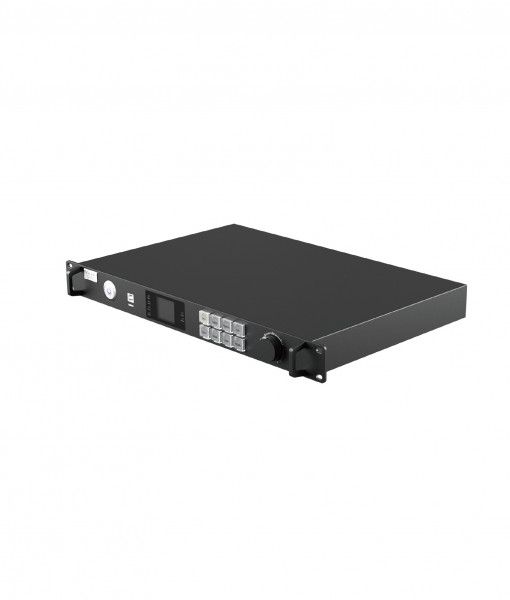

Evision

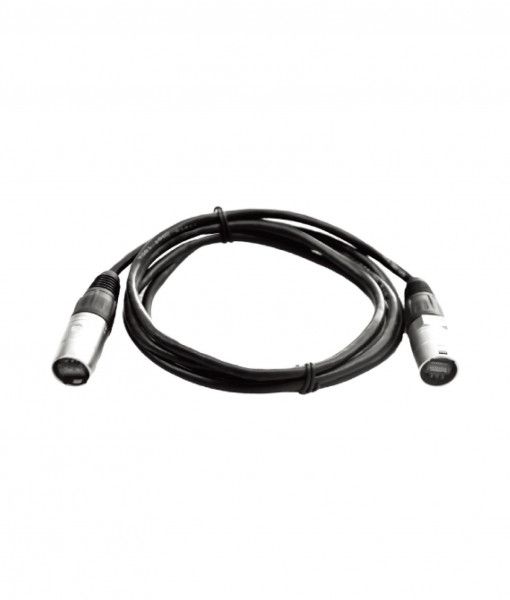

Data Cable

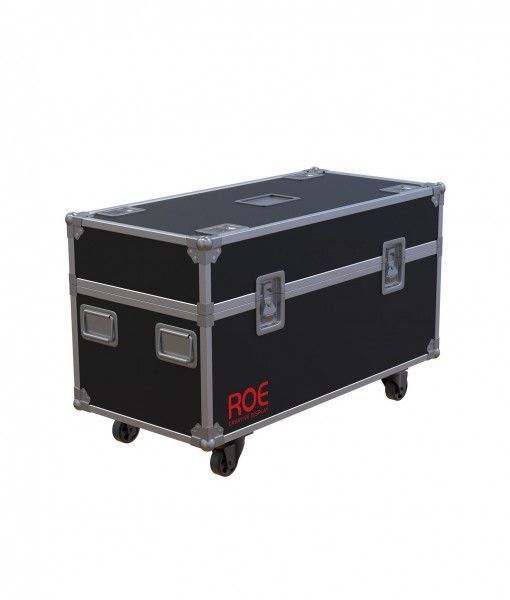

Flightcase

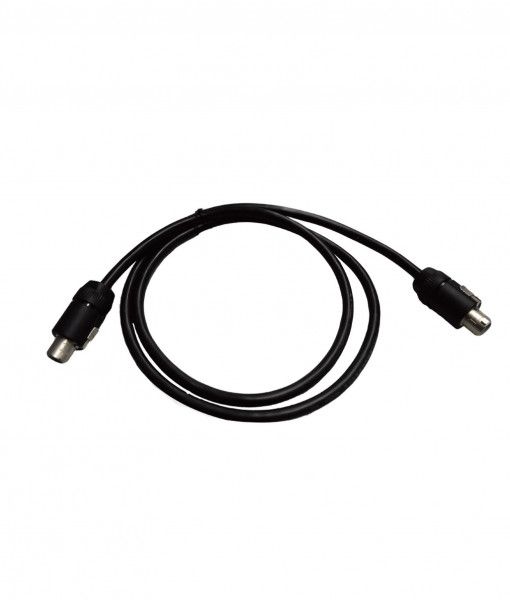

Power Cable

Hanging Bar

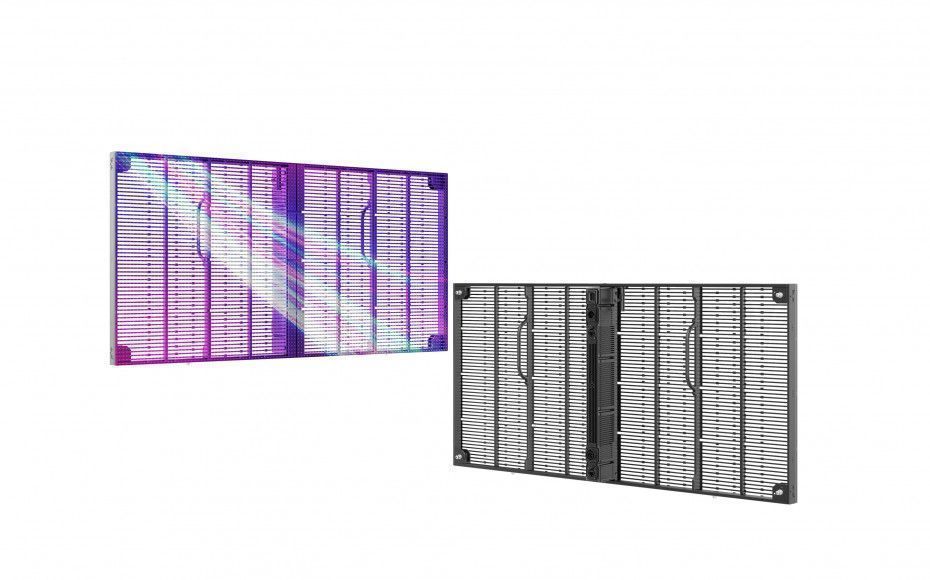

ROE Visual Vanish V8
