Diamond Series

A Lightweight Small-Pitch Alternative

The Diamond LED series in a DM2.6 and DM3.9 pixel pitch, delivers an indoor LED solution with exceptionally vivid colors. The lightweight panels are easy to hang or stack and can be mounted in flat or curved configurations. This cost-effective LED display is suited for many applications, such as rental or xR Stages.

Diamond Ultra Lightweight

Lightweight LED Panel

Diamond LED panels measure 500 x 500 mm and weigh less than 5.5kg (12-lbs) per panel. The lightweight magnesium alloy frame ensures extreme durability.

Diamond Curving Capabilities

Curving Capabilities

Flexible and easy to install in either concave or convex configurations, the Diamond LED panels encourage creativity in both stage design and fixed installations.

Diamond Superb Visual

Superb Visuals

The black, small pixel pitch LEDs guarantee amazing contrast, brightness and deliver a high-definition and very vivid viewing experience.

Diamond Magnet-assisted Assembly

Magnet-assisted Assembly

The Diamond LED panels have incorporated magnets in each panel, ensuring easy set-up for both stacking and hanging configurations.

Facebook's Oculus Connect 6 Event

Downloads

Diamond Key Features

Lightweight Panel Design
90° Corner
Pixel Pitch DM2.6 - 2.6mm DM3.9 - 3.9mm
Indoor Use
Curved Configuration Possible
Black LED for High Contrast and Brightness
Saves Transport Volume
Cost Efficient

Specs

Download All Specs
DM2.6
DM3.9
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • DM2.6
  • 2.6mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 80mm
    19.7” x 19.7” x 3.2”
  • 192 x 192
  • 5.76kg | 12.7lbs
  • 180W / 90W
  • 610 / 280
  • Solid
  • Concave 10° ~ Convex 5°
  • 140°
  • 140°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, TÜV
  • 20 panels
  • 12 panels
  • DM3.9
  • 3.906mm
  • SMD 2020
  • 1500nits
  • 500mm x 500mm x 80mm
    19.7” x 19.7” x 3.2”
  • 128 x 128
  • 5.76kg | 12.7lbs
  • 150W / 80W
  • 510 / 240
  • Solid
  • Concave 10° ~ Convex 5°
  • 140°
  • 140°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, TÜV
  • 20 panels
  • 12 panels
Compare products
Comparison
<< product.title >>
  • Title
Diamond LED Panels

Application Fields

  • Events
  • Corporate Meetings
  • xR Stages
  • Exhibitions
  • Concerts

Accessories

eV4 LED processing

eV4 LED Processor

Base Bar

Hanging Bar

Flightcase

Base Truss

Data Cable

Power Cable

Rear Bridge

Hanging Curve Connection Plate

Curve Connection Plate
Connection Plate

Connection Plate
Connection Plate 4-Way

Connection Plate 4-Way
Marten Hylkema

“The ROE Visual Diamond screens provided a great digital canvas for this specific purpose. The curving capabilities are remarkable, creating an enhanced immersive setting and vivid color display makes the screen really stand out. We have used this screen for several types of applications now and are really satisfied with both the visual quality and the ease of use. The Diamond screens have proven to be a really good investment for us”.

Marten Hylkema MHB

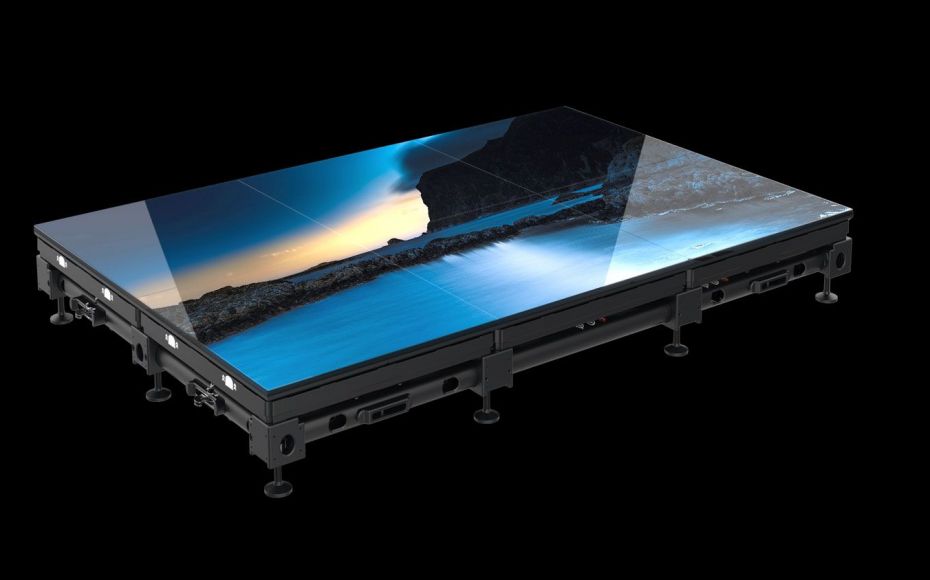

Black Marble LED panel
