Ruby LED Platform

Next generation of LED panels

How to comprise the latest technology into an advanced LED panel and translate that into an outstanding viewing experience? ROE Visual has done just that.

Equipped with specialized LEDs for different segments, the Ruby LED panels are a new generation of LED panels equipped with beneficial features from build to performance.

Request a demo

Simply Stunning

Only the best is good enough. Surpassing existing technology, ROE Visual has developed its existing LED, the 2.3 4in1 LED, exclusively available for Ruby. Stronger, less reflection and more contrast due to an optimized black body, the resulting colors are striking.

HDR. True Colors

Sporting advanced driver ICs and LEDs with large color space, Ruby is fully HDR adaptive. Adding excellent color depth and great grayscales to your visuals.

Ruby LED panels are fitted with exclusive 4in1 LEDs

Exclusive 4in1LED

The Ruby LED panels are fitted with exclusive 4in1 LEDs，which results in a remarkable LED performance, due to reduced glare and leads to a perfect in-camera performance of the LED screens. The enhanced black body between the individual LEDs creates more contrast and guarantees optimum brightness.

Cutting-Edge Common Cathode Technology

Common Cathode technology significantly reduces panel temperature, resulting in efficient heat-dissipation, reduced color differences and higher brightness. Power consumption is reduced by 20-25%.

Flip Chip

Flip Chip

The enhanced black body with the flip chip 1010 LED creates more contrast and guarantees optimum brightness. With its high-contrast and high-brightness LED performance, the Ruby panels give an excellent visual performance for both direct viewing and in-camera visuals.

Ruby LED panel incorporates automatic edge-protection

Automatic Edge Protection

The Ruby LED panel incorporates automatic edge-protection on each corner of the panel, reducing pixel damage drastically. The magnet assisted assembly and vertically operated side locks make assembly quick, accurate and safe.

Unprecedented viewing angle

The absence of any mask enables an unprecedented wide viewing angle. With its high-brightness LED performance, the Ruby panels give an excellent visual performance for both direct viewing and on-camera visuals.

Easy does it.

Easy maintenance with front and rear module service. Integrated PSU and Hub units make the repair and replacement of spare parts easy and cost-effective.

flip chip

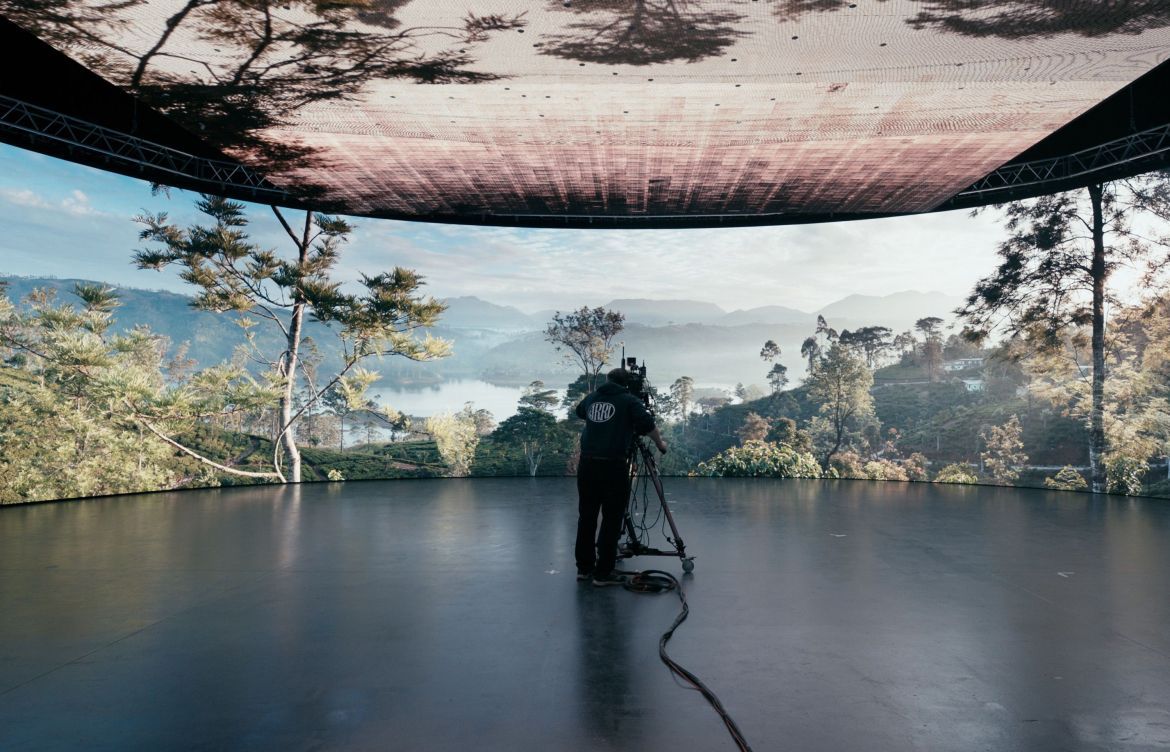

Looking for a dedicated LED type for in-camera purposes, ROE Visual has developed the Flip Chip LED with pixel pitch on 1.5mm (RB1.5F), the new generation of LED panels equipped with features that are beneficial for any studio of film related environment. Also, immersive video environments can be created for broadcast. Now the presenters and audiences can see and interact with the content displayed. This ground-breaking technology is already having a huge influence on how broadcasts are delivered across the globe.

Ruby 1.5F / 1.9F / 2.6F

4in1 LED

Only the best is good enough. Surpassing existing technology, ROE Visual has developed its own LED, the 4 in1 LED packages, exclusively available for Ruby. Stronger, less reflection and more contrast due to an optimized black body, the resulting colors are striking.



Ruby 1.9B V2 Ruby 2.2 / 2.6 Ruby 1.2

Advantages of the ROE Visual Ruby 2.3 LED screen

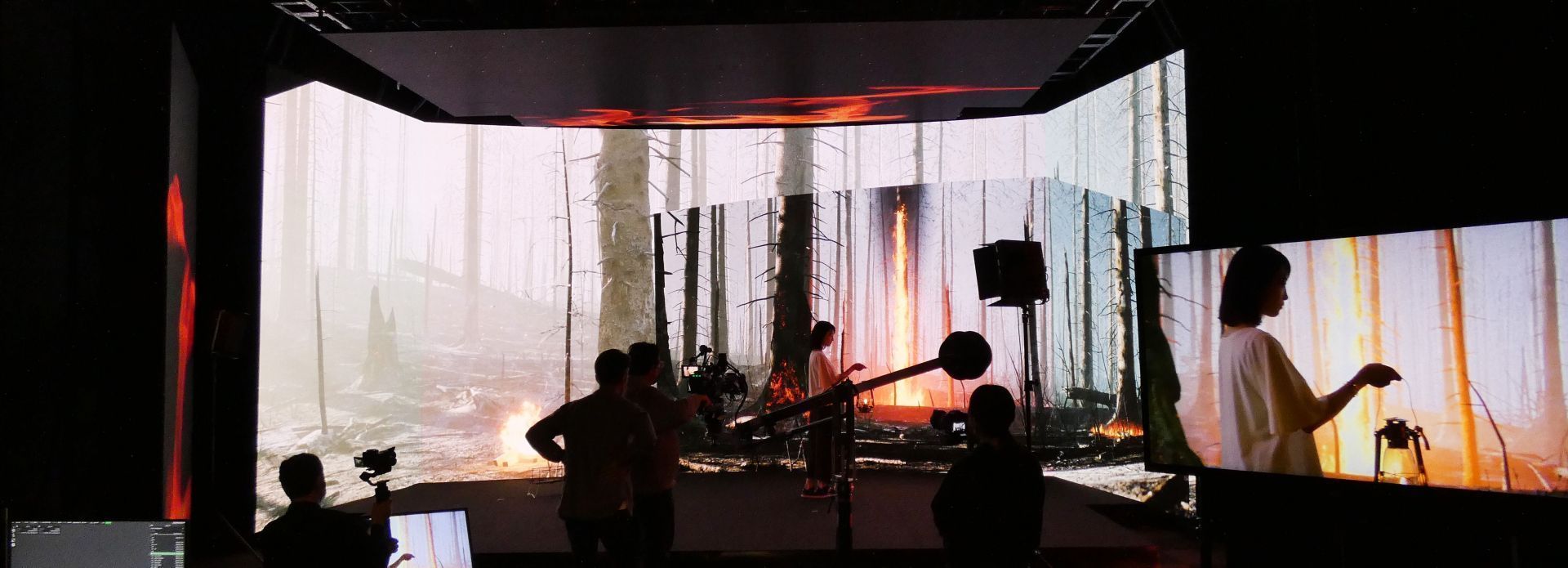

Hibino VFX studio
View case

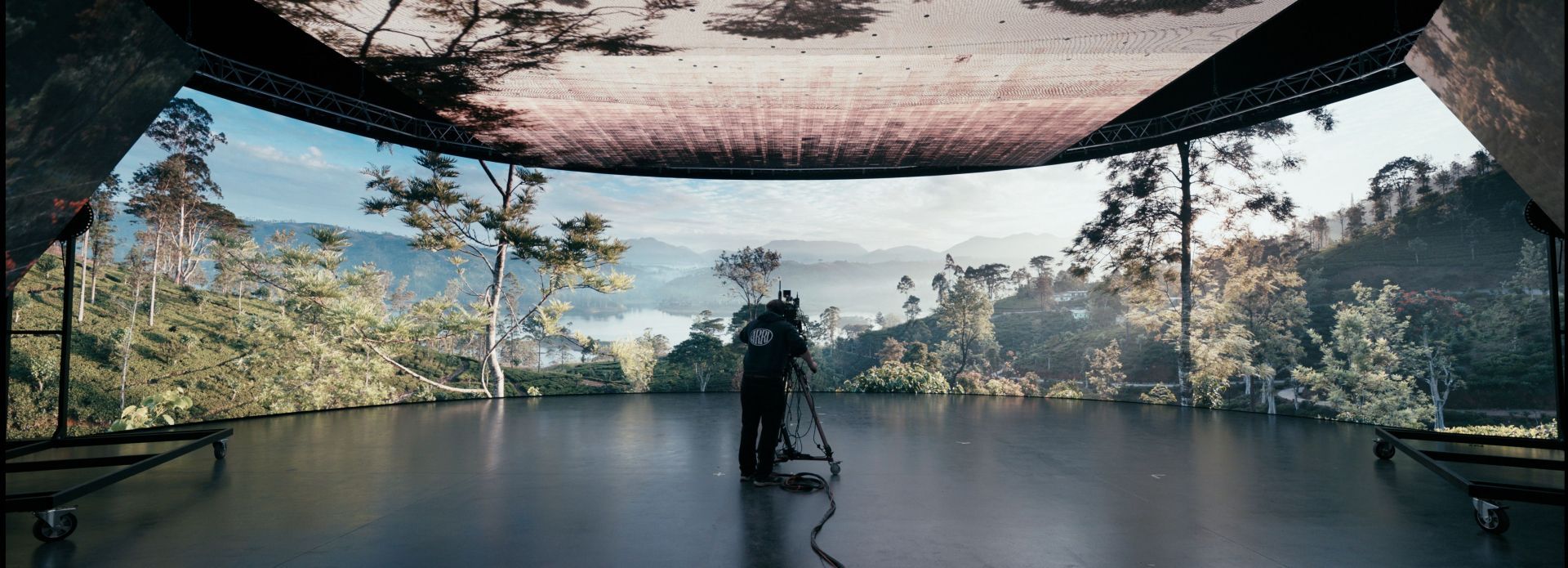

Star Casino

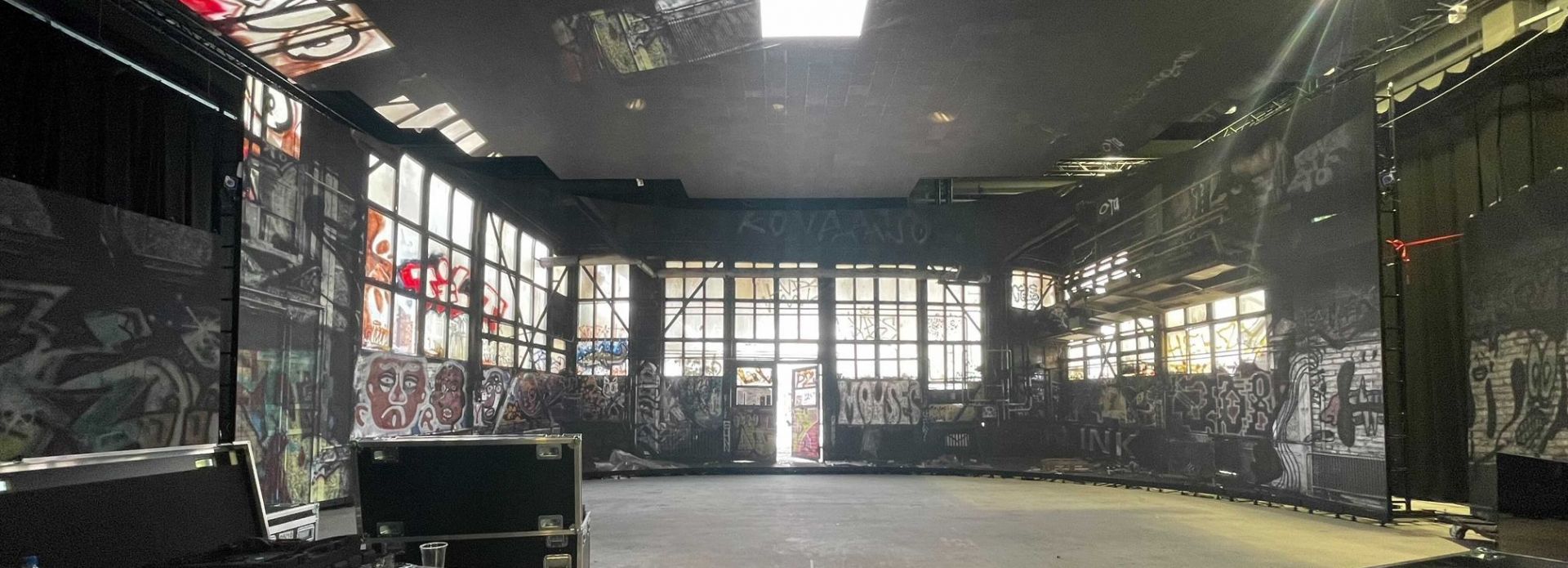

ESC 2019
View case
Ruby LED panel by ROE Visual
Downloads

TheOneCurve™ Lock

  • Position with precision as exact as 1 degree (1 degree)
  • Marketing leading technology (The 1st)
  • Supreme curving smoothness (Level 1)

Ruby Key Features

Energy saving Common Cathode technology
Unique strong 4in1 LEDS
High-brightness - 1500 nits
Easy maintenance - front and rear module service
Automatic Edge-protection - reducing LED damage
HDR supported LED technology

Specs

Download All Specs
RB1.2
RB1.5F
RB1.9F
RB1.9BV2
RB2.2
RB2.6
RB2.6F
RB-B2.6
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • RB1.2
  • 1.25mm
  • 4 in 1 Common Cathode
  • 800nits
  • 500mm x 500mm x 73mm
    19.7” x 19.7” x 2.87”
  • 400 x 400
  • 8.24kg | 18.17lbs
  • 210W / 105W
  • 715 / 330
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 3°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 1/20
  • -20°C ~ 45°C, 10% ~ 90% RH
    4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • RB1.5F
  • 1.56mm
  • 4 in 1 common cathode Flip chip
  • 1500nits
  • 500mm x 500mm x 73mm
    19.7” x 19.7” x 2.87”
  • 320 x 320
  • 8.16kg | 17.99lbs
  • 140W / 70W
  • 475 / 220
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 1/10
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • RB1.9F
  • 1.95mm
  • 4 in 1 common anode Flip chip
  • 1500nits
  • 500mm x 500mm x 73mm
    19.7” x 19.7” x 2.87”
  • 256 x 256
  • 8.3kg | 18.3lbs
  • 140W / 70W
  • 475 / 220
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • RB1.9BV2
  • 1.95mm
  • SMD 1212 Black
  • 1500nits
  • 500mm x 500mm x 73mm
    19.7” x 19.7” x 2.87”
  • 256 x 256
  • 9.2kg | 20.29lbs
  • 160W / 80W
  • 545 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 3°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • RB2.2
  • 2.23mm
  • SMD 1212 Black
  • 1500nits
  • 500mm x 500mm x 73mm
    19.7” x 19.7” x 2.87”
  • 224 x 224
  • 8.24kg | 18.17lbs
  • 150W / 75W
  • 510 / 235
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • RB2.6
  • 2.604mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 73mm
    19.7” x 19.7” x 2.87”
  • 192 x 192
  • 8.5kg | 18.74lbs
  • 160W / 80W
  • 545 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 1/12
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • RB2.6F
  • 2.604mm
  • SMD 1515 Flip chip
  • 2500nits
  • 500mm x 500mm x 73mm
    19.7” x 19.7” x 2.87”
  • 192 x 192
  • 8.02kg | 17.68lbs
  • 210W / 105W
  • 715 / 330
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • RB-B2.6
  • 2.604mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 72.19mm
    19.7” x 19.7” x 2.84”
  • 192 x 192
  • 9.08kg | 20.02lbs
  • 160W / 80W
  • 545 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 1/12
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • Indoor
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 16 panels
  • 12 panels
Ruby LED Specs
Compare products
Comparison
<< product.title >>
  • Title

Accessories

Ruby rear connector

Ruby Rear Connector

Use the rear connector to connect your panels to the Stacking system.

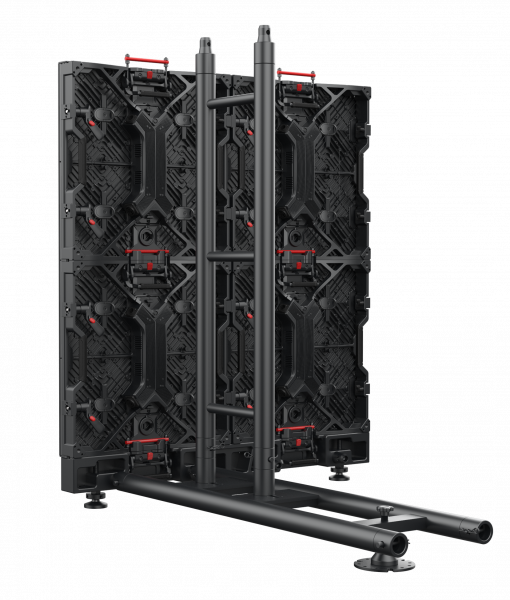

Ruby Stacking System

Ruby Stacking System

Use the Stacking System to support your LED screen.

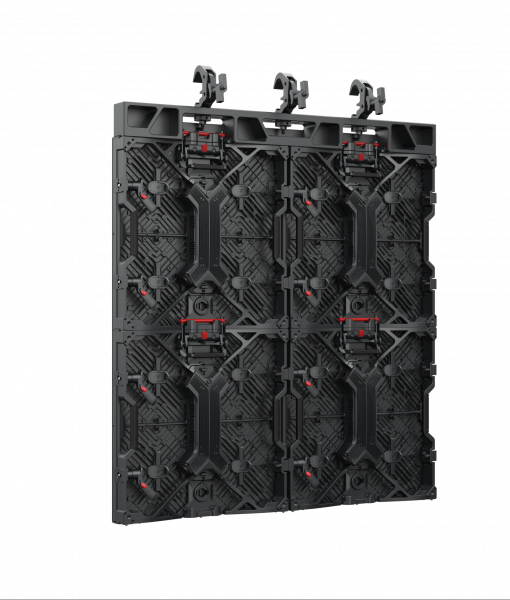

Ruby Hanging Bar

Use the Ruby Hanging Bar for a safe supporting your screen from a truss or other structures.

Processing Platform

Ruby works on Brompton and Helios processing platforms

Brompton

Rear Base Truss

Base Bar

Hanging Bar

Data Cable

Power Cable
