Vanish V8T - Touring

Now you see it, now you don't

The Vanish V8T Transparent LED panel complements the Vanish series of transparent LED panels. With a transparency of 50%, this LED panel offers outstanding performance in outdoor environments through its high-brightness and excellent viewing angles.

Request a Demo

V8T Outdoor Touring Solution

Transparent Outdoor LED panel

The Vanish V8T panels offer an outdoor touring solution in a transparent panel design. With a transparency of 50%, the V8T is fitted with special frames to facilitate easy handling and fast building

Outstanding Display Performance

Perfect Panel Performance

Due to its high-brightness LED and the high contrast of the black panel the Vanish V8T offers a great visual performance.  The wide viewing angles contribute to that, even in challenging outdoor conditions. The minimalistic design of the louvers, PCB and LEDs, guarantee maximum transparency.

V8T curving options

Excellent gray-scales and curving options

The Vanish V8T offers 14-bit gray-scales enhancing the quality of the visual performance. The ability to curve the LED panels will give you freedom for creative designs.

V8T Modular Design

Facilitating on-site service

The V8T panels are easy to service due to its modular design. The modular powerbox and receiving card module make repair and replacement of spare parts easy and cost-effective. The side locks guarantee the sturdy and road-proof installation of the panels and frames.



Efficient handling and Transport

The V8T has a robust panel frame. The frames can be stored and transported in dedicated dollies, offering protection for the panels while creating efficient transport conditions.

Vanish 8 Touring Key Features

50% Transparency
Easy Maintenance
Suited for Outdoor use (IP65)
Hanging and Stacking
Curving Options

Downloads

Specs

Download All Specs
V8T
V8T-H
V8T-V
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • V8T
  • 8.9mm
  • SMD 1515 White
  • 4000nits
  • 1000mm x 1000mm x 95mm
    39.4” x 39.4” x 3.74”
  • 112 x 112
  • 18.2kg | 40.13lbs
  • 480W / 240W
  • 1635 / 750
  • 50%
  • Rear
  • Concave 10° ~ Convex 10°
  • 160°
  • 160°
  • 3840Hz
  • 14bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, UKCA
  • 22 panels
  • 6 panels
  • V8T-H
  • 8.9mm
  • SMD 1515 White
  • 4000nits
  • 1000mm x 500mm x 95mm
    39.4” x 19.7” x 3.74”
  • 112 x 56
  • 11.22kg | 24.74lbs
  • 260W / 130W
  • 890 / 445
  • 41%
  • Rear
  • Concave 10° ~ Convex 10°
  • 160°
  • 160°
  • 3840Hz
  • 14bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, UKCA
  • 40 panels
  • 12 panels
  • V8T-V
  • 8.9mm
  • SMD 1515 White
  • 4000nits
  • 500mm x 1000mm x 95mm
    19.7” x 39.4” x 3.74”
  • 56 x 112
  • 14.56kg | 32.1lbs
  • 260W / 130W
  • 890 / 445
  • 35%
  • Rear
  • Concave 10° ~ Convex 10°
  • 160°
  • 160°
  • 3840Hz
  • 14bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, UKCA
  • 22 panels
  • 6 panels
Compare products
Comparison
<< product.title >>
  • Title
Vanish V8T

Application Fields

  • Touring
  • Concert
  • Outdoor Events

Accessories

V8T Dolly

Dolly
V8T Data Cable

Data Cable
V8T Power Cable

Power Cable
V8T Base Bar

Base Bar
V8T Base Truss

Base Truss
V8T Hanging Bar

Hanging Bar
Tony Thompson

“We believe that all audiences could be engaged through great stage design and vivid images brought by LED panels. ROE Visual provides us with LED products presenting incredible real stage visualization for all, and we are delighted with the results. Having the Vanish V8T panels on the stage, the visual effects are in line with our high expectations.”

Tony Thompson Upstaging Inc.

Kings of Leon Take ROE Visual on tour

Vanish V8T

Starting with a stunning 3D image of a real scale-sized golden plane descending and landing on the stage and have the artist come out of it onto the wing with dancers and start performing his songs is a spectacular show opening. Vanish V8T made this jaw-dropping visual trick possible.

Vanish V8S indoor

Discover

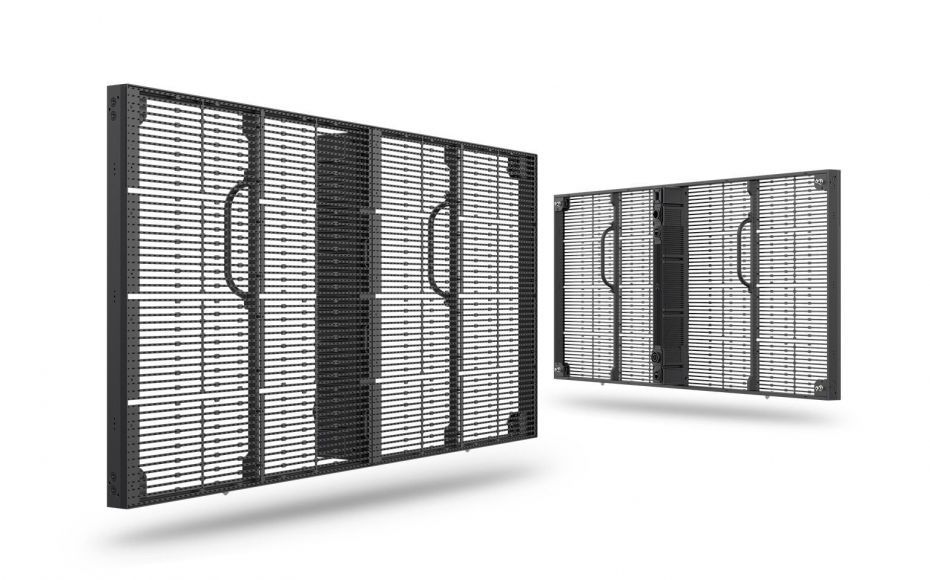

Vanish V8 LED panel
