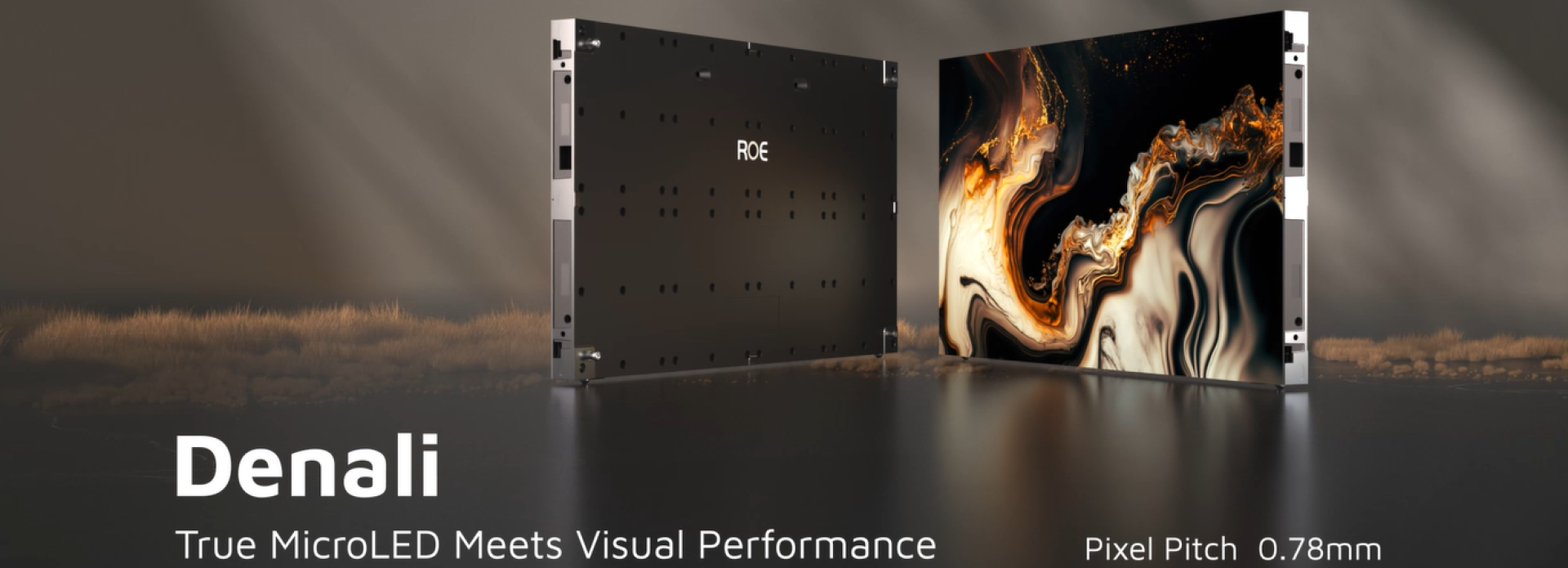

Denali
Innovation Meets Visual Performance
Denali is ROE Visuals latest groundbreaking LED solution, setting new standards in visual excellence. Denali is designed to captivate, with its ultra-thin frame, a pixel pitch of 0.78mm, and native 16:9 resolution. Using the innovative Micro LED In Package (MIP) technology, Denali is energy-efficient and boasts incredible contrast and a wide viewing angles. Denali arresting visual performance guarantess a lasting impression.
MIP Technology - A New Benchmark in Visual Performance
True Micro LED Technology
Equipped with True Micro LED chips, Equipped with true Micro LED chips, Denali offers enhanced black levels, higher contrast, and ultra-wide viewing angles, ensuring outstanding visual performance in high-end displays.
The microscopic chip size results in an impressive 99.67% black area ratio for the Denali LED panels, contributing to an almost black LED surface delivering great contrast. The MIP Technology utilizes mass transfer technology for high production efficiency and exceptional precision.Using an innovative no-substrate micro LED design eliminates substrate refraction, resulting in an wide light output angle.

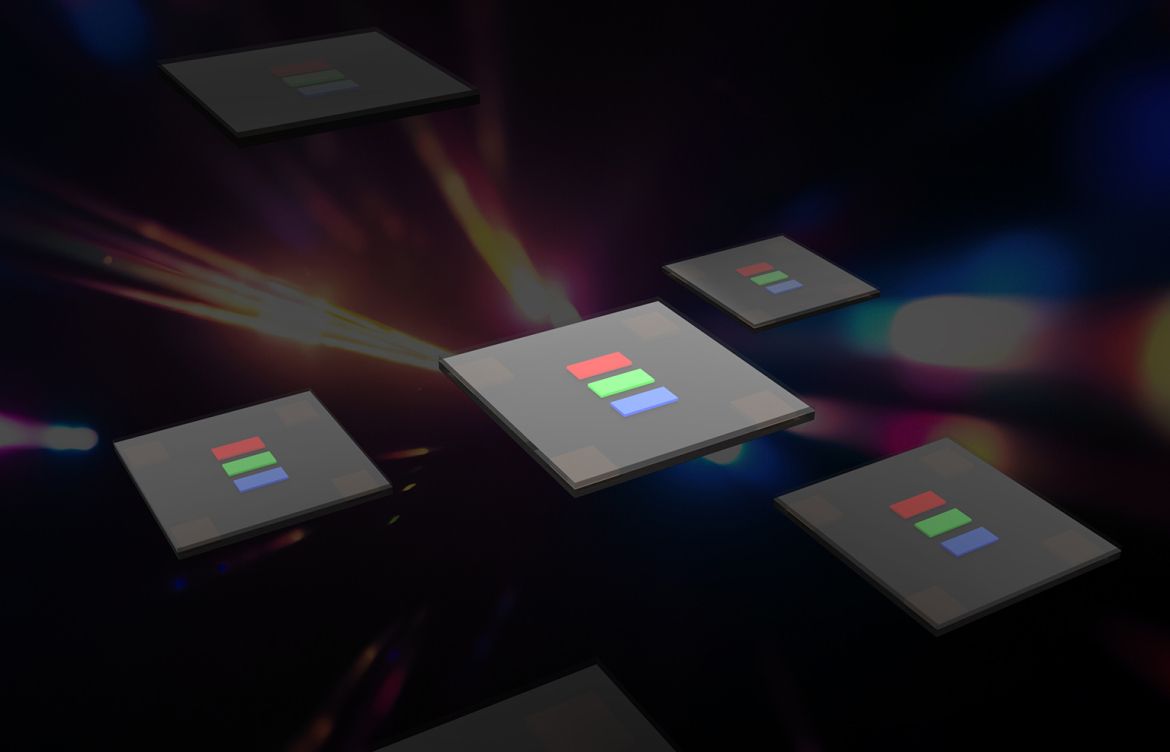

Semiconductor Fan-Out Packaging
Denali uses the advanced Fan-Out package technology for Micro LED, facilitating the measurement processes to ensure that each module meets stringent quality standards. This ensures precise encapsulation, resultig in an even and flawless LED display surface and exceptional light uniformity for seamless visual consistency.

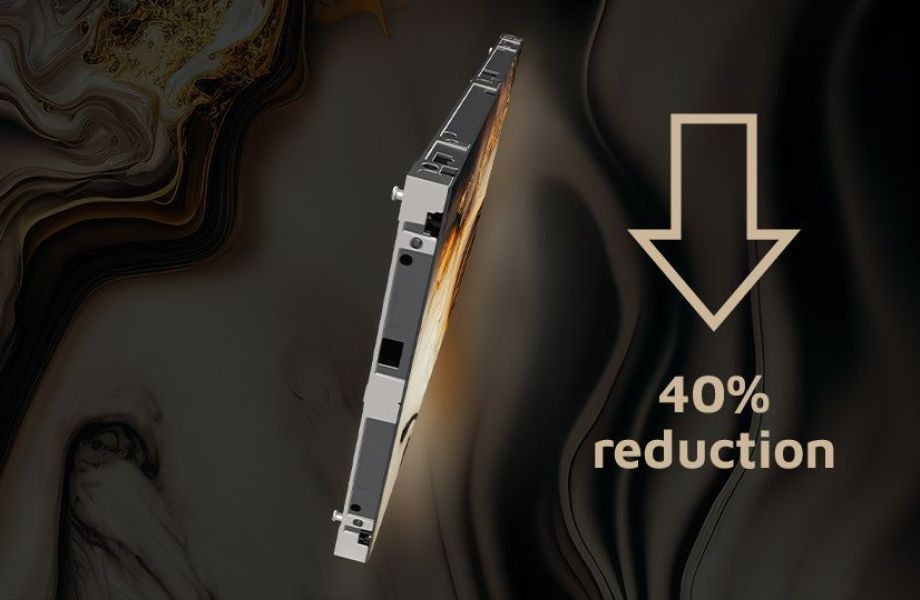

Reduced Energy Consumption
Utilizing common cathode, flip chip Micro LED technology, in combination with a high-efficiency power supply, the Denali LED panels boast a reduced energy consumption of up to 40% compared to conventional LED panels. The stable and low panel temperature contributes to superior color performance and extended lifespan.

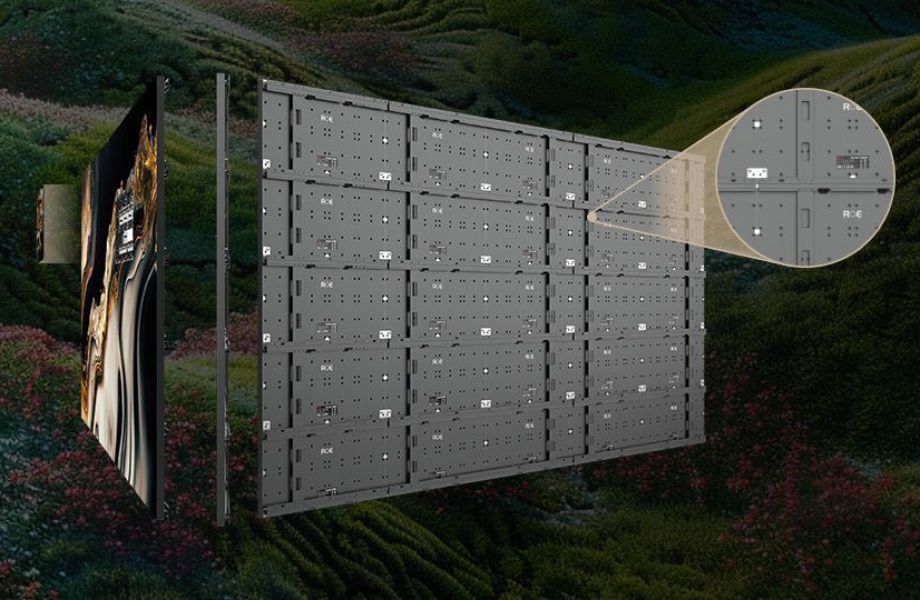

Modern Elegance in High Precision
Denali's slim panel and frame design, measuring a mere 55mm, introduces a touch of modern elegance to any space. The panels have a standard native 16:9 aspect ratio, measuring 600mm x 337.5mm. Equipped with a meticulously engineered, high-precision mounting frame, seamless integration into any environment is a breeze.

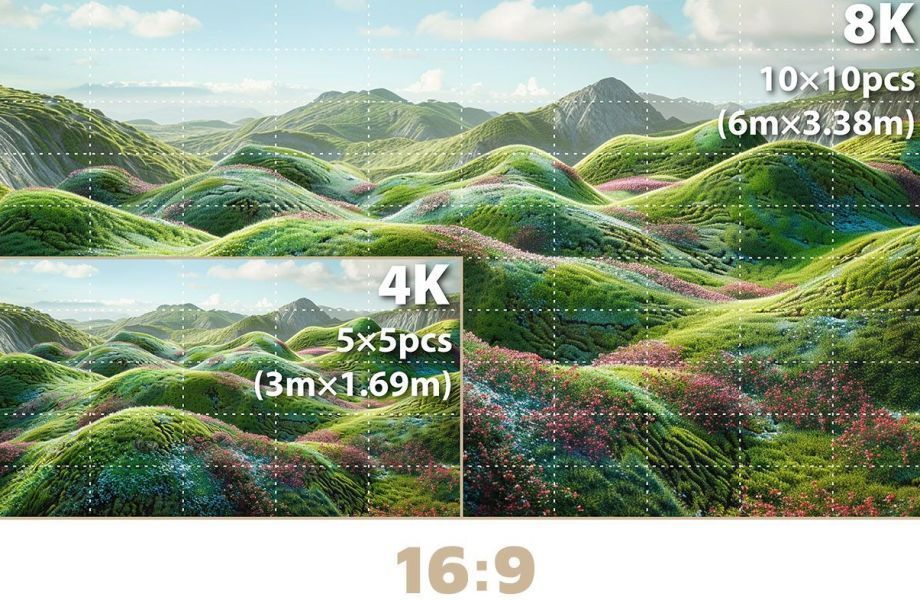

Flexible 16:9 Display Configuration
Designed for native 16:9 aspect ratios, Denali can be configured into various sizes, including widescreen options, offering unmatched versatility for any application where 4K or 8K LED canvasses are required.
Download Denali Brochure
Denali Key Features
Specs
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency
- Serviceability
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- Denali
- 0.78mm
- Micro LED in Package
- 600nits
- 600mm x 337.5mm x 29.9mm
23.62” x 13.29” x 1.18” - 768 x 432
- 5.5kg | 12.13lbs
- 80W / 40W
- 270 / 135
- Solid
- Front
- 170°
- 170°
- 7680Hz
- 16bit
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP40
- CE, ETL, FCC, UKCA
Application fields

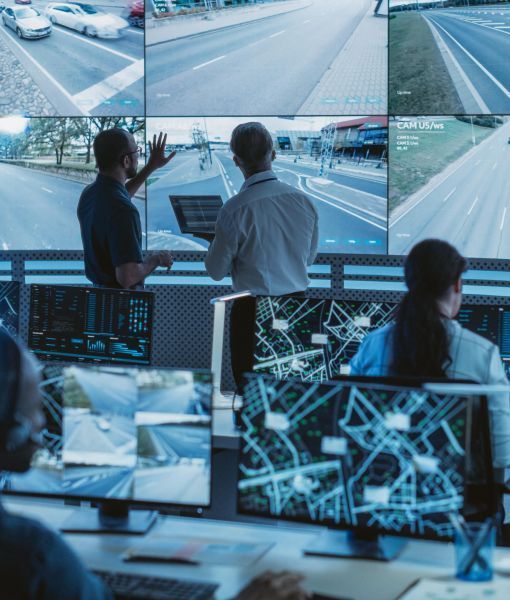

Control Rooms

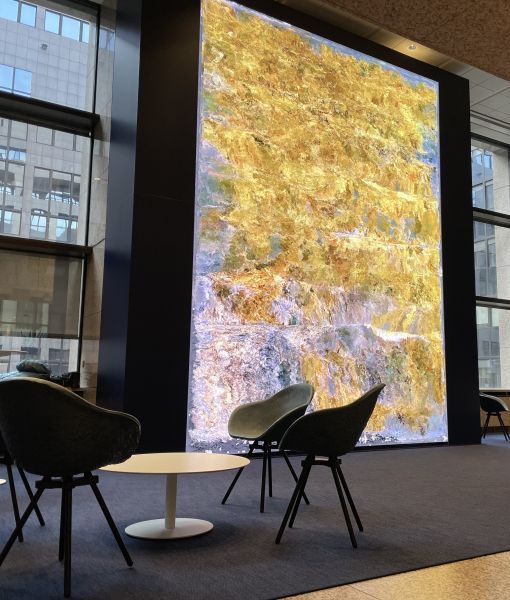

Digital Art & Musea
Reception Areas & Branding Spaces
