Graphite

Durable Meets Lightweight

Graphite offers a durable yet lightweight LED solution that provides quick installation through its intuitive smart-lock system. Graphite is ideal for building large LED walls and ceilings fast and efficiently.

Contact Us

Your Lightweight LED Solution

Graphite is designed to offer a lightweight LED solution for those circumstances where reducing weight can be a decisive factor. Weighing just under 17 kg/m2, Graphite is durable yet lightweight. No compromises have been made to either the panel design or the visual performance, so expect brilliant visual performance and high-grade LED quality.

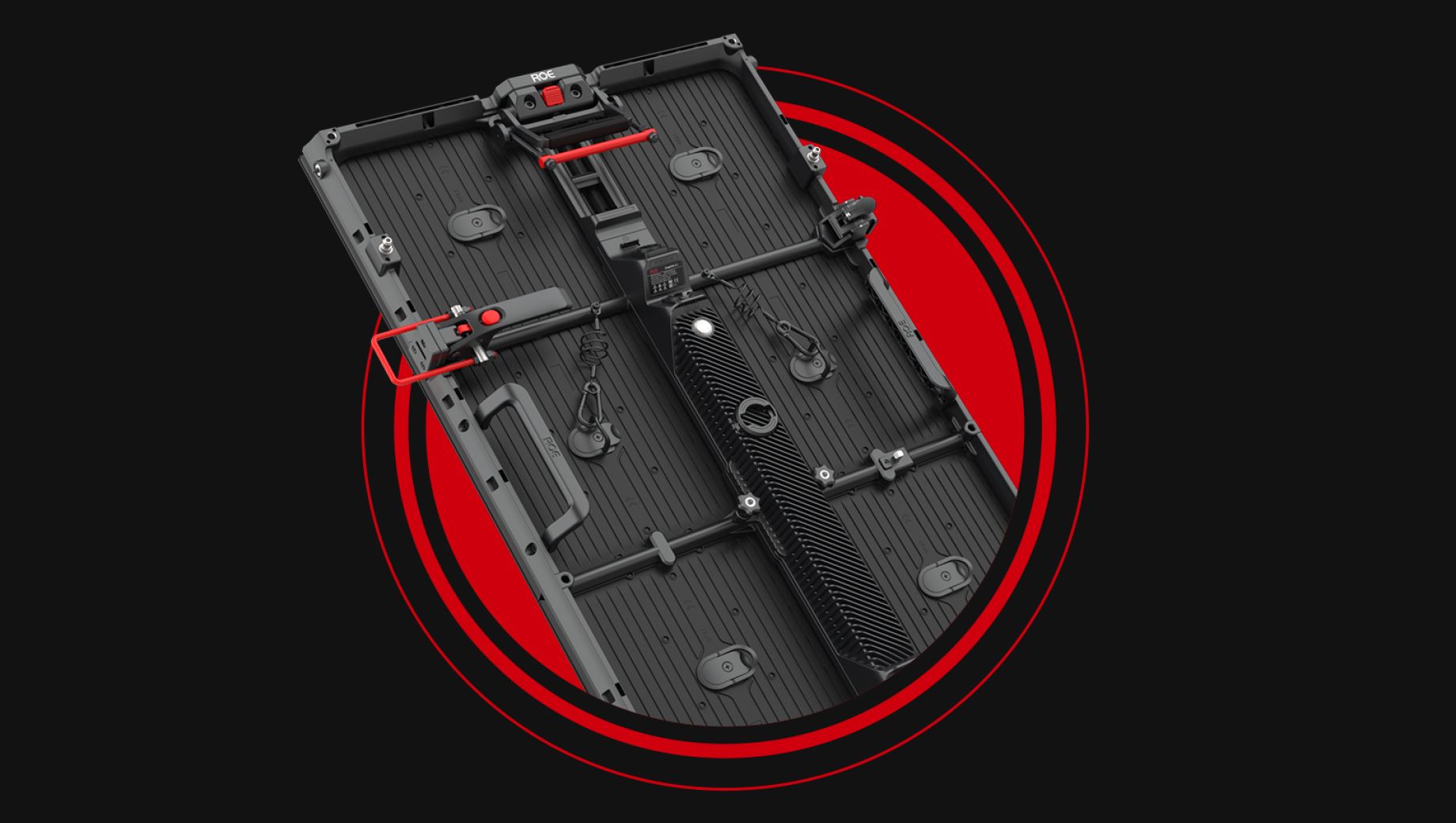

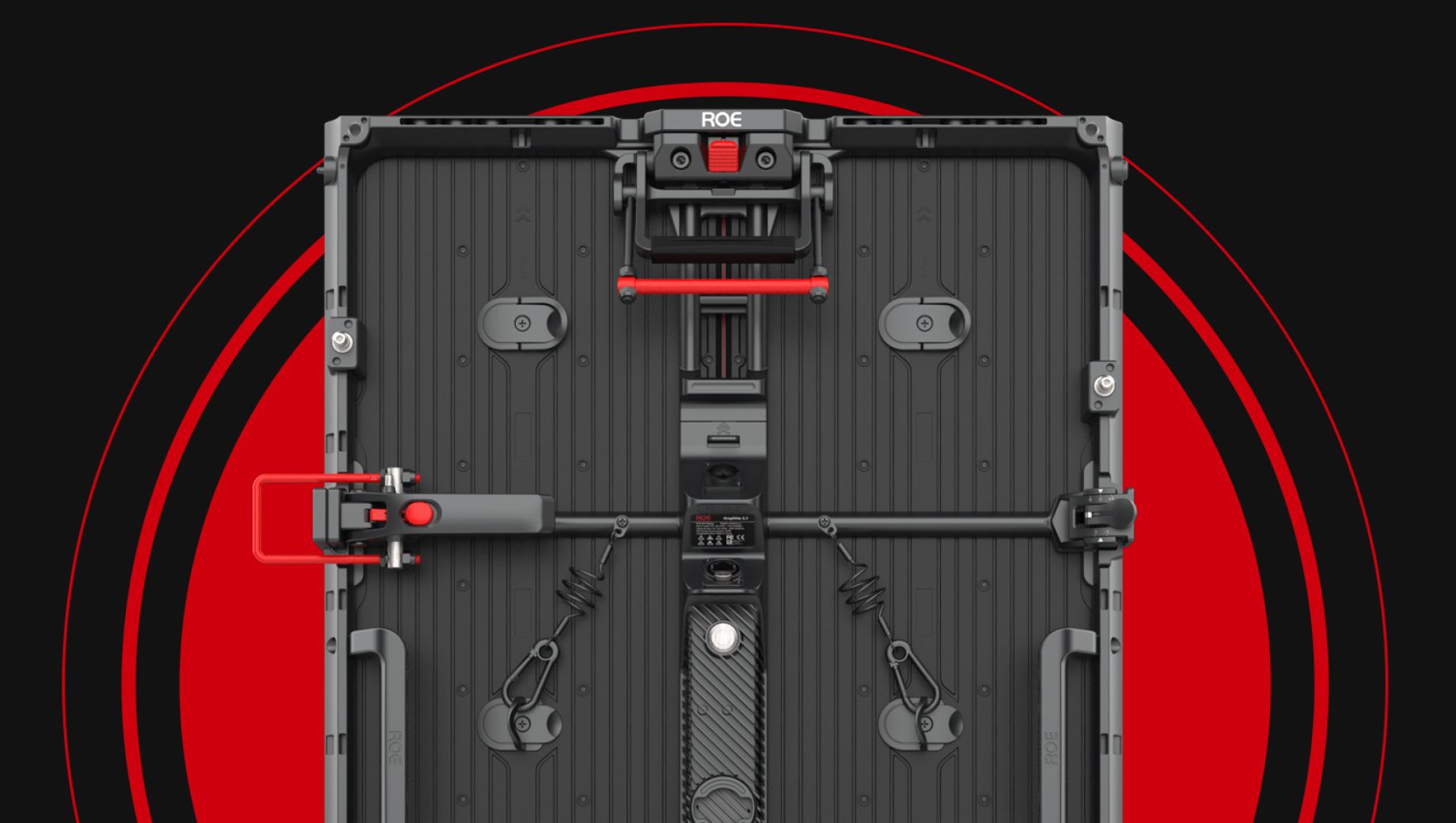

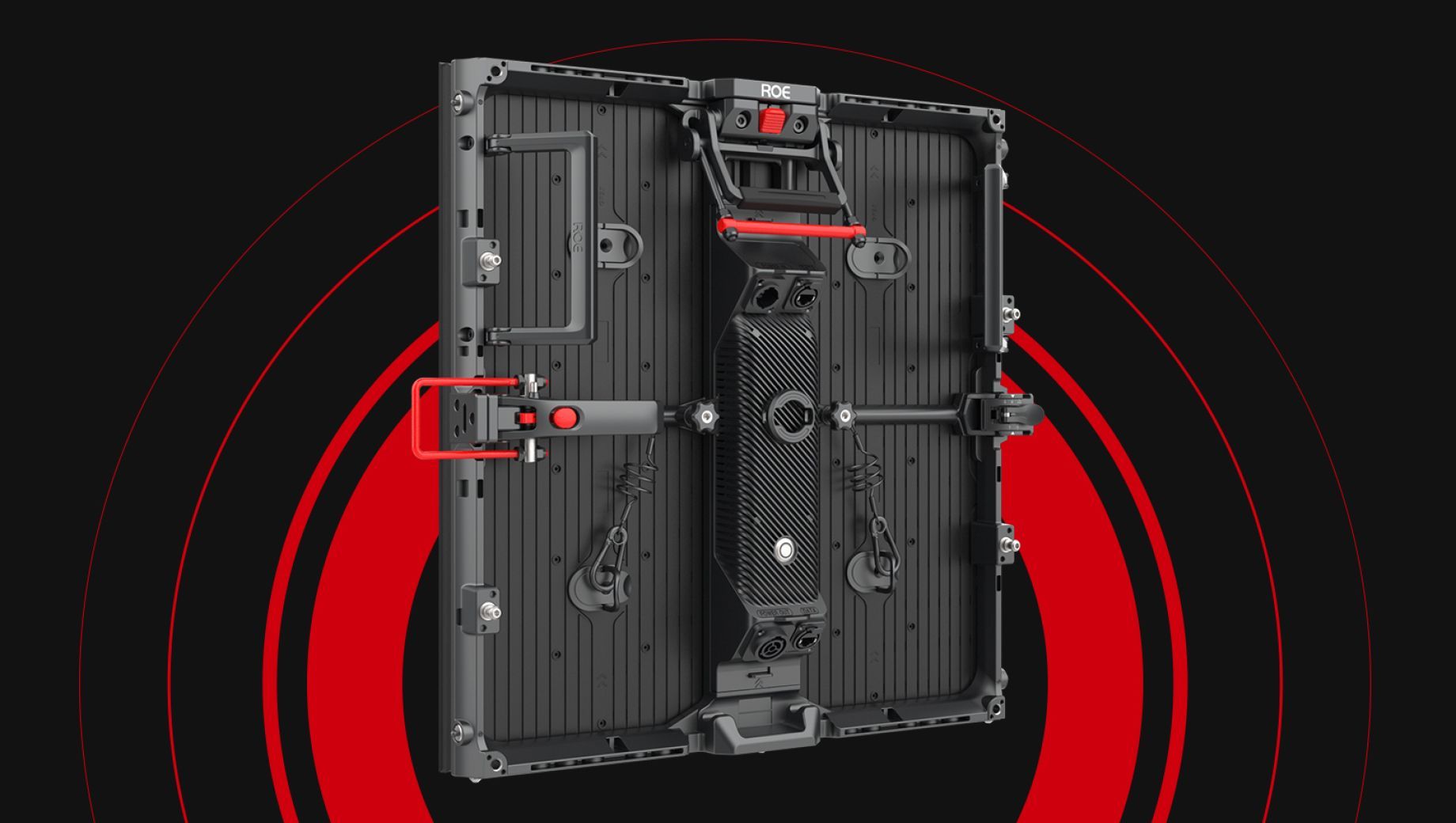

Quick Installation with an Intuitive Smart-lock System

Achieve fast and effortless installation through Graphite’s clever panel design. Large, light panels are combined with integrated magnet-assisted assembly and a smart-lock system. The smart-lock system saves up to 40% compared to the assembly time for regular LED panels.

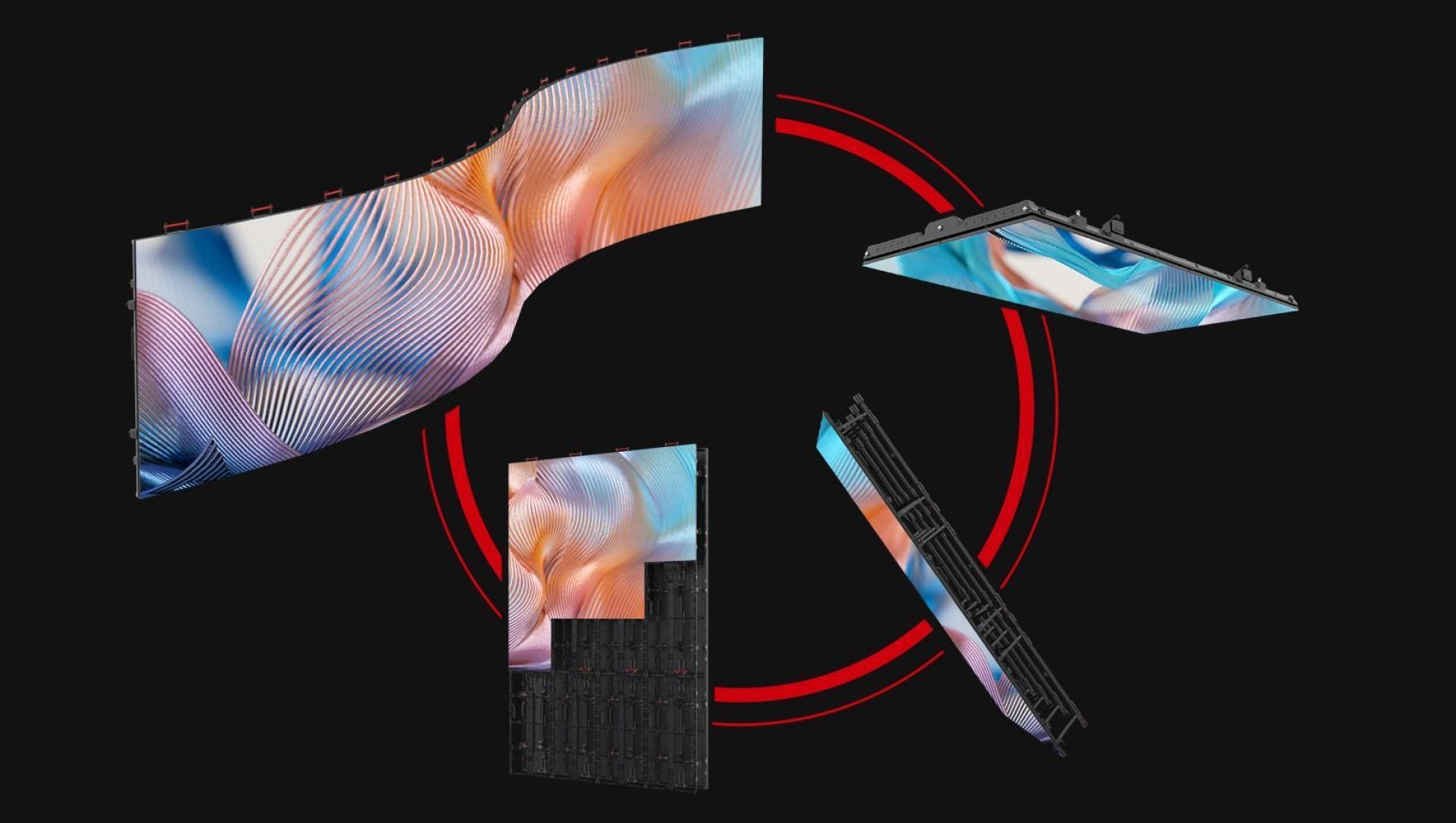

The Ideal LED Solution for Indoor Events

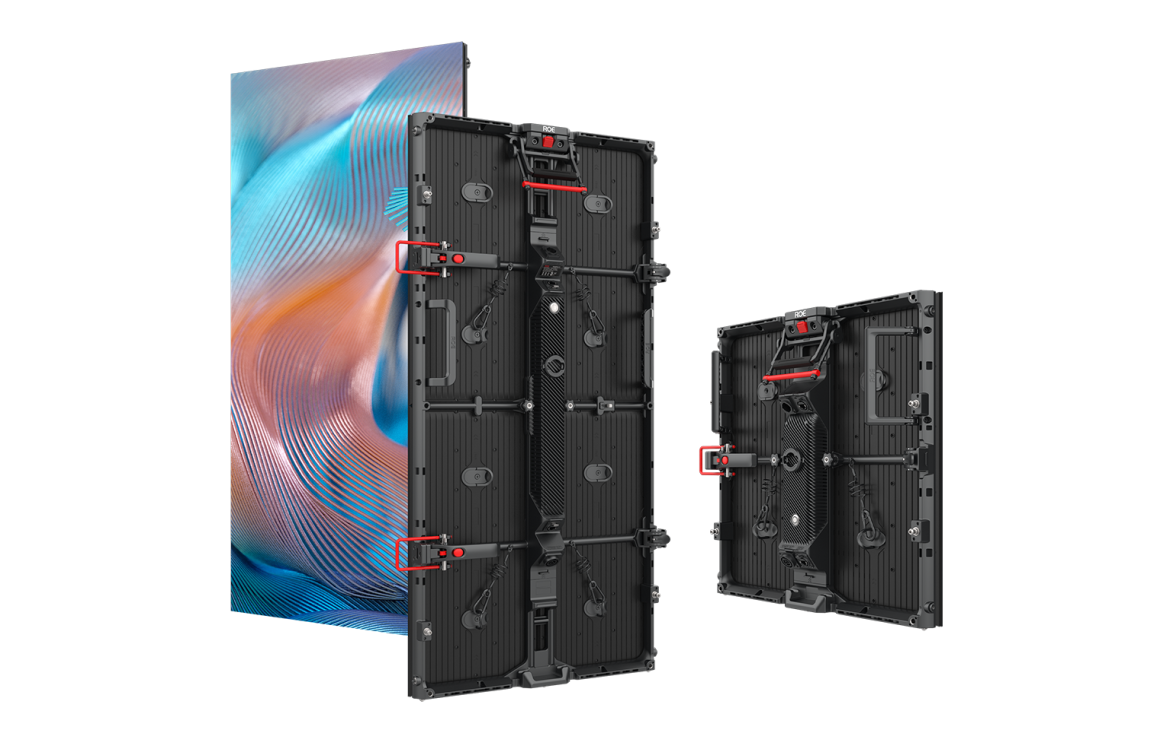

Graphite allows for various installation options and is deliverable in full and half panels. You have the choice to build an LED wall, ceiling, or curved LED displays. Furthermore, Graphite offers easy solutions for building your LED display at raked angles or double-sided.

Easy Maintenance

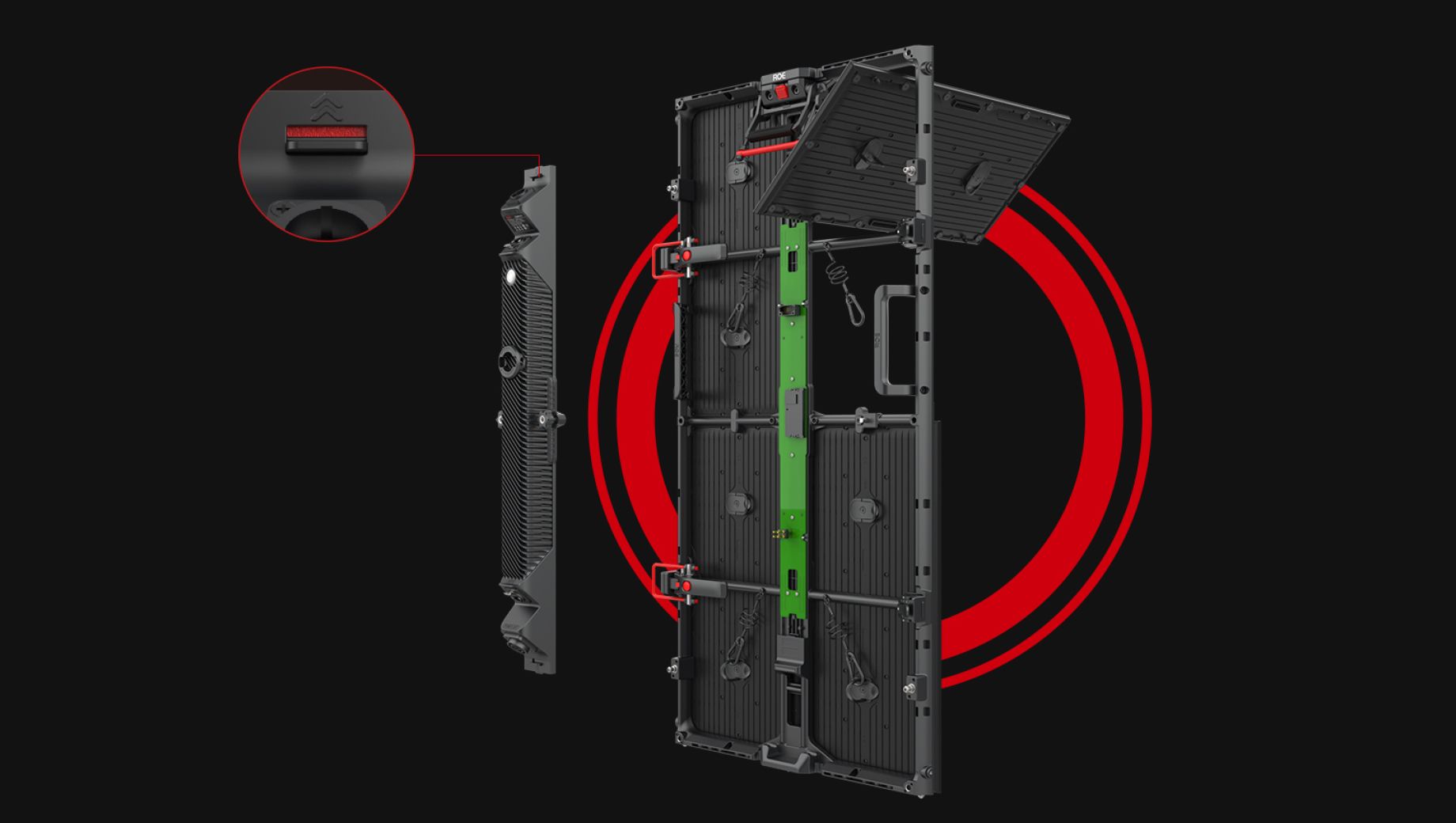

Graphite offers easy, in-service maintenance. Both the PSU and the LED modules can be swapped while in use. The LED modules are interchangeable and can be replaced from the front as well as from the back of the LED panel.

Half Panel

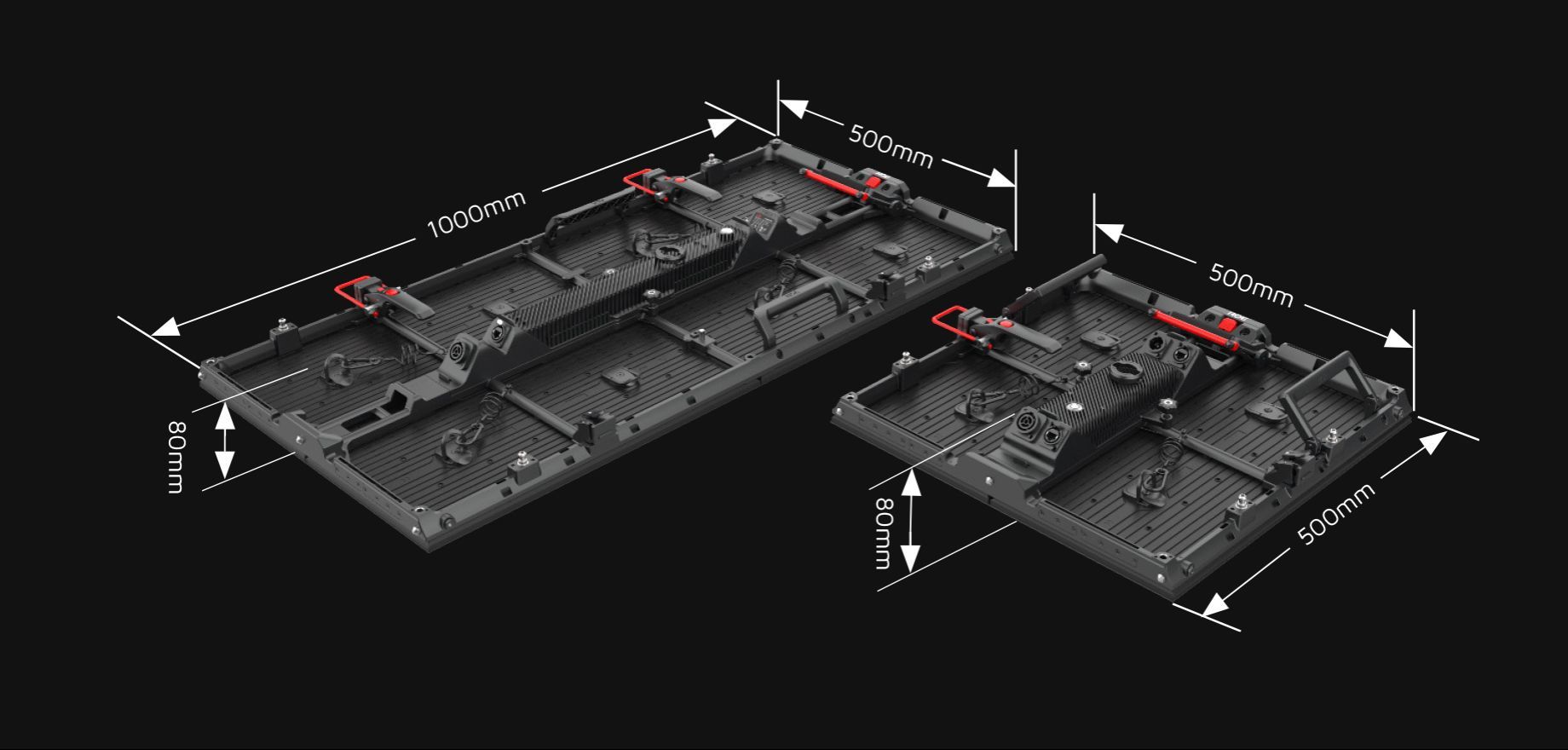

Graphite LED panels are available in two sizes, the standard 500 x 1000mm (w x h) panel and a half-panel measuring 500 x 500mm. Graphite also offers various solutions for corners and edges - ask for our options!

Graphite video

Graphite Key Features

Light weight
Light weight
Curveable
Curveable
Smart lock system
Smart lock system
Quick install
Quick install
Double slides hanging
Double slides hanging
Easy maintenance
Easy maintenance
Air Truss choice
Air Truss choice
High brightness
High brightness
Half panel
Half panel

Specs

Download All Specs
GP2.6
GP2.6 Half
GP3.1
GP3.1 Half
GP3.9
GP3.9 Half
GP2.6 (4 in 1)
GP2.6 Half (4 in 1)
GP2.6 Corner
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • GP2.6
  • 2.604mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 1000mm x 80mm
    19.7” x 39.4” x 3.1”
  • 192 x 384
  • 9kg | 19.84lbs
  • 320W / 160W
  • 1100 / 500
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 7680Hz
  • 16bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, UKCA
  • 12 panels
  • 6 panels
  • GP2.6 Half
  • 2.604mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 80mm
    19.7” x 19.7” x 3.1”
  • 192 x 192
  • 5.2kg | 11.44lbs
  • 160W / 80W
  • 550 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 7680Hz
  • 16bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, UKCA
  • 24 panels
  • 12 panels
  • GP3.1
  • 3.125mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 1000mm x 80mm
    19.7” x 39.4” x 3.1”
  • 160 x 320
  • 9kg | 19.84lbs
  • 320W / 160W
  • 1100 / 500
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, UKCA
  • 12 panels
  • 6 panels
  • GP3.1 Half
  • 3.125mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 80mm
    19.7” x 19.7” x 3.1”
  • 160 x 160
  • 5.2kg | 11.44lbs
  • 160W / 80W
  • 550 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, UKCA
  • 24 panels
  • 12 panels
  • GP3.9
  • 3.91mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 1000mm x 80mm
    19.7” x 39.4” x 3.1”
  • 128 x 256
  • 9kg | 19.84lbs
  • 320W / 160W
  • 1100 / 500
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, UKCA
  • 12 panels
  • 6 panels
  • GP3.9 Half
  • 3.91mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 80mm
    19.7” x 19.7” x 3.1”
  • 128 x 128
  • 5.2kg | 11.44lbs
  • 160W / 80W
  • 550 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, UKCA
  • 24 panels
  • 12 panels
  • GP2.6 (4 in 1)
  • 2.604mm
  • 4 in 1 common anode
  • 1500nits
  • 500mm x 1000mm x 80mm
    19.7” x 39.4” x 3.1”
  • 192 x 384
  • 8.6kg | 18.96lbs
  • 250W / 125W
  • 850 / 390
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 7680Hz
  • 16bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, UKCA
  • 12 panels
  • 6 panels
  • GP2.6 Half (4 in 1)
  • 2.604mm
  • 4 in 1 common anode
  • 1500nits
  • 500mm x 500mm x 80mm
    19.7” x 19.7” x 3.1”
  • 192 x 192
  • 5.1kg | 11.24lbs
  • 125W / 62W
  • 425 / 195
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 7680Hz
  • 16bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, UKCA
  • 24 panels
  • 12 panels
  • GP2.6 Corner
  • 2.604mm
  • SMD 1515 black
  • 1500nits
  • 250mm x 500mm x 250mm
    9.85” x 19.7” x 9.85”
  • 192 x 192
  • 6.83kg | 15.06lbs
  • 160W / 80W
  • 550 / 250
  • Solid
  • Front
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 7680Hz
  • 16bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, UKCA
  • 24 panels
  • 12 panels
Compare products
Comparison
<< product.title >>
  • Title

Downloads

Application Fields

  • Touring productions
  • Festivals
  • Corporate events
  • Indoor Sports Events

Accessories

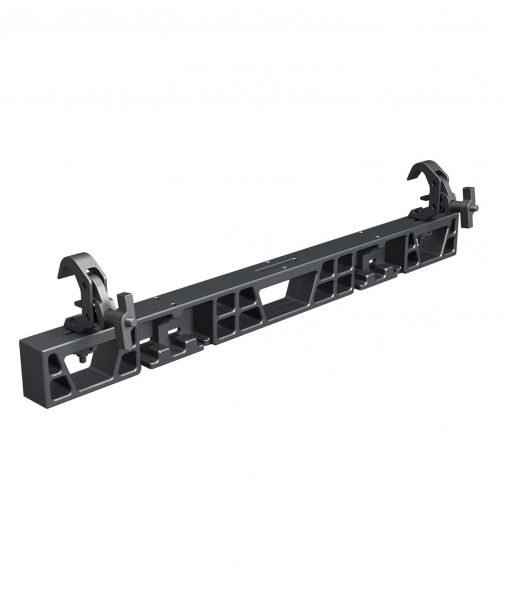

Hanging Bar

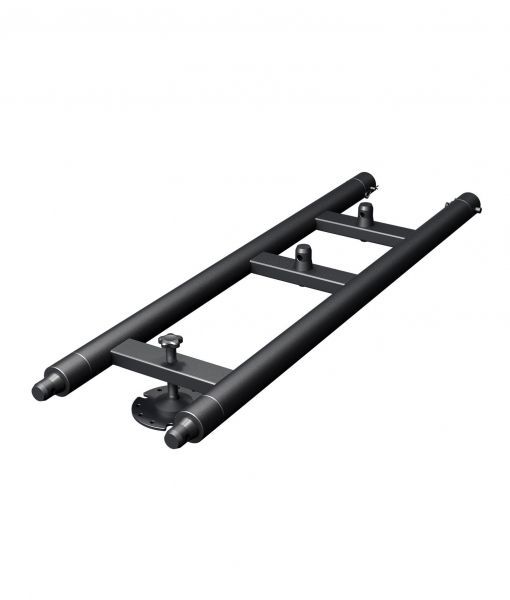

Base Truss

Power Cable

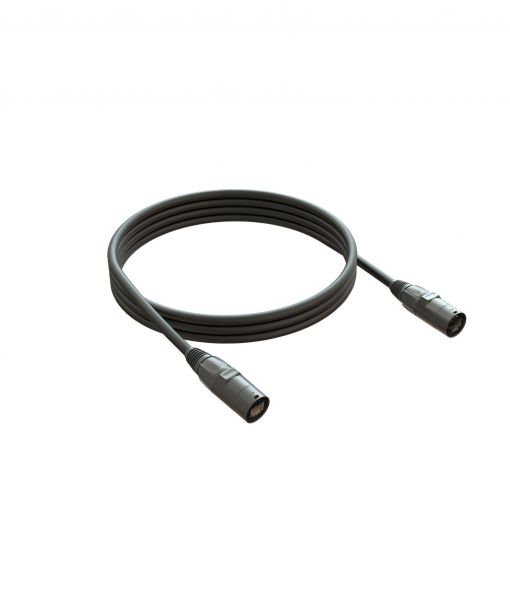

Cable

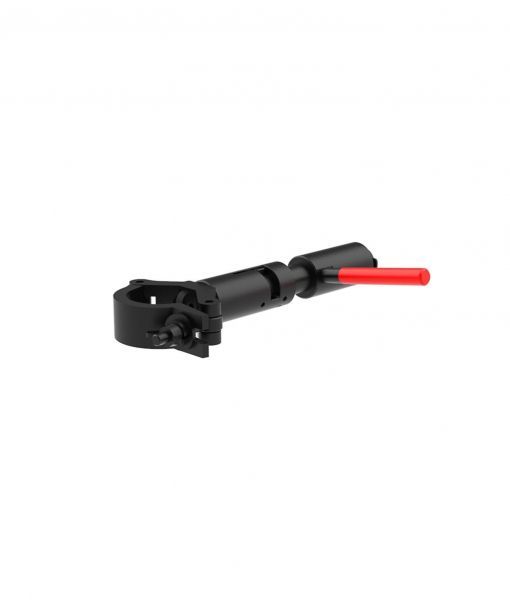

Rear Bridge

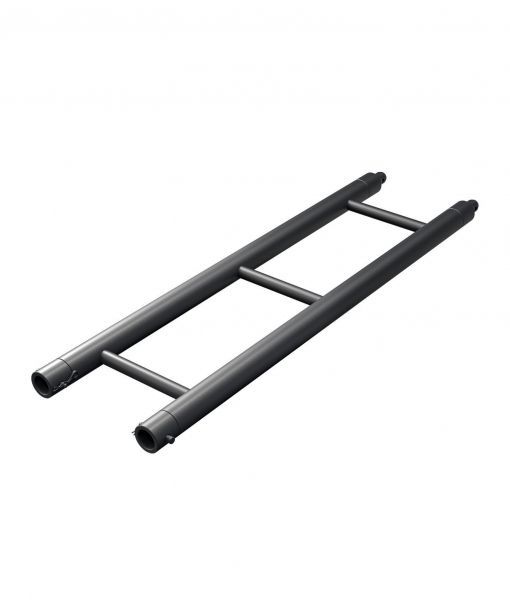

Rear Truss
David Luchsinger

Helping with Oracle CloudWorld 2022 has been a thrilling experience. We couldn’t be more proud of our teams, LMG and BrainHub, for their efforts to bring the design to life. Having ROE Visual LED screens installed onsite is great, and the lightweight and easy-to-setup features are game-changing.

David Luchsinger Director of LED for ETP Brainhub

Carbon

Explore

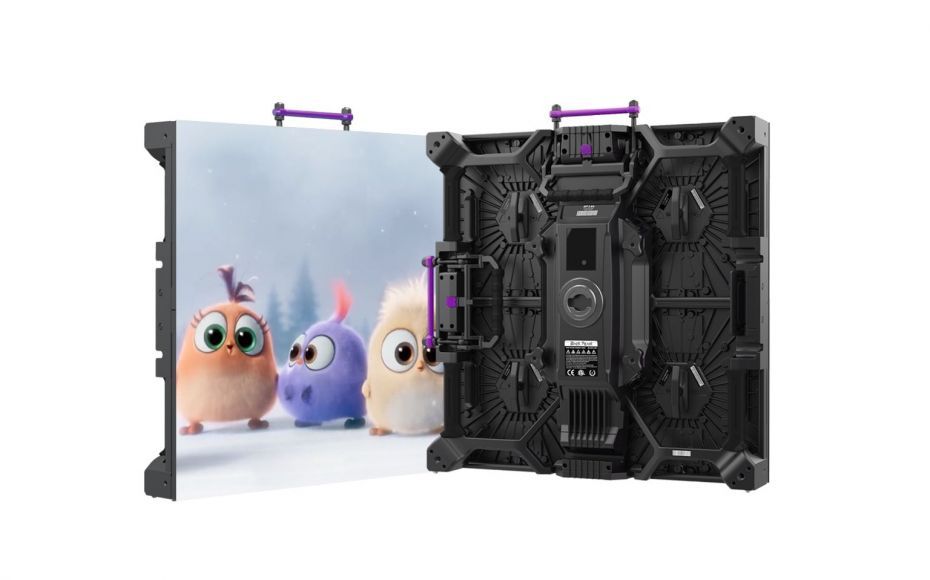

Black Pearl
