ROE Visual's favorite processing platforms for LED displays

Tessera SX40 Specs

• Up to 4096 x 2160 resolution (progressive only)
• Full 18Gbps HDMI 2.0 bandwidth, maximum 600MHz pixel clock
• One 12G SDI input that supports the following: HD-SDI – ST-292, 3G-SDI – ST-424, Level A and Level B-DL, 6G-SDI – ST-2081, 12G-SDI – ST-2082, 2SI format
• Four 10GBASE-T copper output ports
• Supports nominally 9 million pixels at 36 bits per pixel @ 60Hz
• 2 frames end-to-end system latency (all features)
• Bi-level and Tri-level Genlock sync

Tessera XD

The Tessera XD 10G data distribution unit works seamlessly with the Tessera SX40 LED processor to deliver a flexible, sophisticated single box solution designed specifically to easily and cost-effectively support the biggest LED projects.
The Tessera SX40 processor and Tessera XD data distribution unit support both copper and single mode optical fibre trunk connections, and the Tessera XD can be used to convert between the two media.

Redundancy

Tessera LED processors can be fed from the same or independent video sources, with different formats, resolutions, and/or frame rates.

There’s no requirement for any aspect of the sources to match – redundancy will ensure a near-seamless show even in the event of a power or cable failure.

Custom input

With the Tessera SX40 you can build a screen of almost any size and dimension and be sure that your content plays beautifully on it.

For complete flexibility and creative control, the Tessera SX40 processor accepts custom input resolutions.

HELIOS specs

• Full 8K video pipeline
• Display Port 1.4
• HDMI 2.0
• Up to 4x 12G SDI inputs
• Fiber Distribution (80Gbps)
• Redundant power supply
• 1RU

HELIOS Front Panel

The front panel LCD provides quick and easy access to a range of information with a press of the front knob. Quickly find the processor’s IP address, active input resolution, and port status, or preview incoming video thumbnails.

HELIOS Rear Panel

• Redundant power supply
• LAN Control Port
• Video Inputs: DP, HDMI, SDI
• Display Outputs: 8x SFP+ Ethernet Ports
• Sync Input

Why HELIOS?

• High Performance
• Expandable
• No recalibration needed
• Robust API
• Realtime Health Monitoring
• Web Control (no software required)

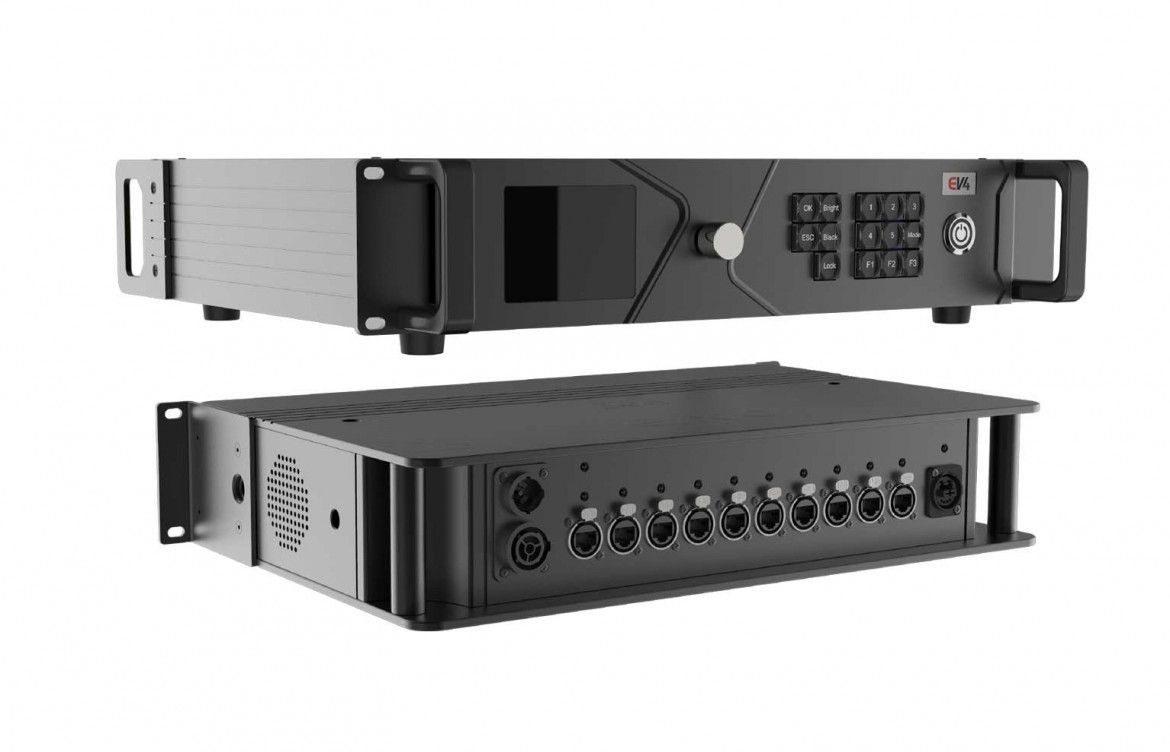

eV4 specs

• Full-fledged 4K LED processor for ROE Visual EVISION products.
• 4K LED processing the easy way
• Compatible with all EVISION products with i6 and i9 card
• Integrated flexible options, like image scaling to match your LED screen size.
• Edge correction
• Hot Back
• Pairing with the new fiber distributor system, eV4 is maximum flexible even can support long distance signal transmission

eV4 supports 4K

Following the display evolution in its footsteps, the eV4 processor enables next generation image display. The eV4 processor can handle 4K resolution display on a 60Hz frame rate, thus creating an outstanding image performance.

Flexible integrated image processor

The eV4 processor offers integrated flexible options, like image scaling to match your LED screen size. Furthermore, it offers divers input support, such as: HDMI2.0, DP1.2 and SDI-3G.

Key functions

• Integrated Image Processor
• Edge correction
• Low latency
• Extended color adjustment and color processing functions
• Scaling functions
• Diverse input possibilities
