Black Marble

Brilliant LED at your feet.

ROE Visual’s Red Dot award-winning Black Marble LED floor panel brings creativity to your feet. Available with a high-contrast glass or matte or mirror finish, these floor panels are suited for a wide range of creative uses, such as events, broadcast, hospitality and xR stages.

Request a Demo

ROE Visual Fashionable Finishes

Fashionable Finishes

The Black Marble panels are deliverable in various high-end finishes, and pixel pitches; suited for different environments and applications. The Deep Black Glossy, Mirror, Standard Matte, and Deep Black Matte finish all have a strong, anti-scratch surface.

The Matte finishes offer a non-reflective LED panel, ideal for broadcast or XR Stages, the Deep Black Glossy finish offers a stylish and glossy panel with a true, deep back color. Ideal for a high-tech design look and feel for retail, architectural, and exhibition applications.

ROE Visual Black Marble panel swop ROE Visual Black Marble panel swop 2

Easy service and maintenance

The LED floor modules can be removed from the top, guaranteeing a swift and easy module swop for service or maintenance. Just take out the module using suction cups and replace it in a similar way.

ROE Visual Support Options ROE Visual LED support frame

Support Options

The Black Marble support options are easy and quick to install and offer a versatile support system that can be used to create floors, multi-level floors or stages, and stairs. This thought-through integrated system is very easy to install and leaves room for maximum creativity while guaranteeing structural stability and safety at all times. The BM4 LED floor has a loading capacity of 2000 kg.

ROE Visual LED floor Staircase

Complete your LED floor with staircase options

The Black Marble LED floor support system includes an easy option to build stair cases or multi-level platforms. Ideal to create beautiful immersive designs.

ROE Visual Black Marble Triangular LED panel

Black Marble LED Floor Triangular panels

The Black Marble LED floor system includes triangular LED panels adding extra design options. A round LED floor is easy configured using the standard square and triangular Black Marble LED panels.

ROE Visual Black Marble Video Wall ROE Visual Black Marble Video Wall 2

Black Marble Wall System

Easy integration is possible with the Black Marble support system to create a LED wall. The LED panels can be mounted to a wall support frame that creates seamless connection with the LED floor. Go for an all-in-one solution with immersive visuals.

Downloads

Key Features

Top access for easy module maintenance
IP65 rating, outdoor use and wet cleaning to keep your floor in pristine condition, is easy.
Great loading capacity, max. loading 2000kg/m2
Stairs and multilevel stages - standard step height is 208mm
Safe access - anti-skidding surface on all LED panels
Magnetic Modules, easy module swapping

Specs

Download All Specs
BM2-Matte
BM4-Glass
BM4-Matte
BM4-Mirror
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • BM2-Matte
  • 2.82mm
  • SMD 1515 Black
  • 800nits
  • 609.6mm x 609.6mm x 133mm
    24” x 24” x 5.2”
  • 216 x 216
  • 18.6kg | 41lbs
  • 310W / 155W
  • 1060 / 490
  • Solid
  • Front
  • n.a.
  • 140°
  • 7680Hz
  • 16bit
  • 1/12
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, WEEE
  • BM4-Glass
  • 4.76mm
  • SMD 1921 White
  • 800nits
  • 609.6mm x 609.6mm x 142mm
    24” x 24” x 5.6”
  • 128 x 128
  • 23.4kg | 51.59lbs
  • 290W / 145W
  • 990 / 460
  • Solid
  • Front
  • n.a.
  • 140°
  • 3840Hz
  • 14bit
  • 1/8
  • 0°C ~ 45°C, 10% ~ 90% RH
    32°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, WEEE
  • BM4-Matte
  • 4.76mm
  • SMD 1921 White
  • 2000nits
  • 609.6mm x 609.6mm x 135mm
    24” x 24” x 5.3”
  • 128 x 128
  • 17.5kg | 38.58lbs
  • 290W / 145W
  • 990 / 460
  • Solid
  • Front
  • n.a.
  • 140°
  • 3840Hz
  • 14bit
  • 1/8
  • 0°C ~ 45°C, 10% ~ 90% RH
    32°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, WEEE
  • BM4-Mirror
  • 4.76mm
  • SMD 1921 White
  • 1200nits
  • 609.6mm x 609.6mm x 142mm
    24” x 24” x 5.6”
  • 128 x 128
  • 23.4kg | 51.59lbs
  • 290W / 145W
  • 990 / 460
  • Solid
  • Front
  • n.a.
  • 140°
  • 3840Hz
  • 14bit
  • 1/8
  • 0°C ~ 45°C, 10% ~ 90% RH
    32°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, WEEE
Compare products
Comparison
<< product.title >>
  • Title
Black Marble LED Panels

Application Fields

  • Events
  • Broadcast
  • Concerts
  • Carshows
  • Hospitality

Accessories

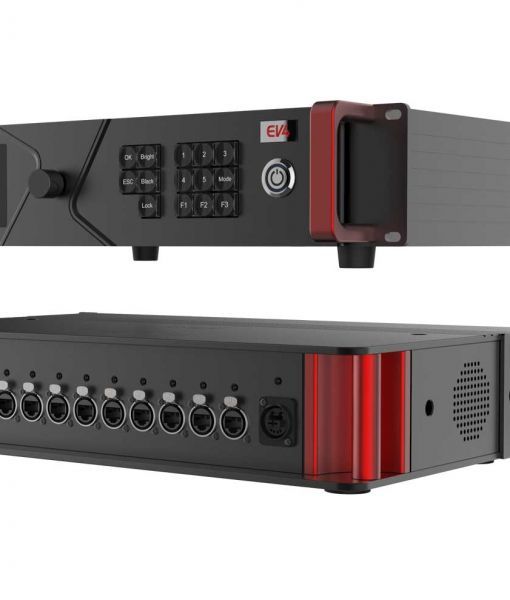

LED processors

Data Cable

Flightcase

Frame 1

Holds 1 x 1 Black Marble panels

Frame 2

Holds 2 x 1 Black Marble panels

Frame 3

Holds 2 x 2 Black Marble panels

Frame 4

Holds 3 x 2 Black Marble panels

Power Cable
