Topaz

The All-purpose Live Events LED Panel

Are you looking for a versatile LED platform with trusted ROE Visual quality? Topaz (TP for short) fits that bill seamlessly. With its high-precision mechanics and excellent visual quality, it offers everything you love about ROE Visual. Topaz is a creative LED all-in-one platform, including flat, curve, or cube, that combines stable and reliable performance with affordable cost-of-ownership, playing into the market challenges of AV rental companies.

Download the Topaz brochure

Request a demo

high quality

High Quality, Low Investment

Topaz offers excellent visual quality and creative options that assemble with the precision and ease you're accustomed to – just like all ROE Visual LED panels. Topaz is easy to hang or stack, allowing for seamless installations that foster all imaginable solutions in stage design.

easy maintenance

Easy Maintenance

Offering rear module service, the Topaz panels are easy to service. The integrated PSU and Hub units make on-site servicing easy and cost-effective.

topaz series

Compatible Topaz Series

Experience the brilliance of the Topaz LED platform, designed to captivate with its small pitch from 1.9 to 2.6 and vibrant colors. This indoor LED solution has exceptional efficiency and is ideal for various applications. With its high-brightness LED performance, the Topaz panels give an excellent visual performance for direct viewing and in-camera visuals.

Topaz video

Topaz Key Features

Versatile
Lightweight LED panel design
1500 nits brightness
Modular PSU and HUB design
Front and rear module service

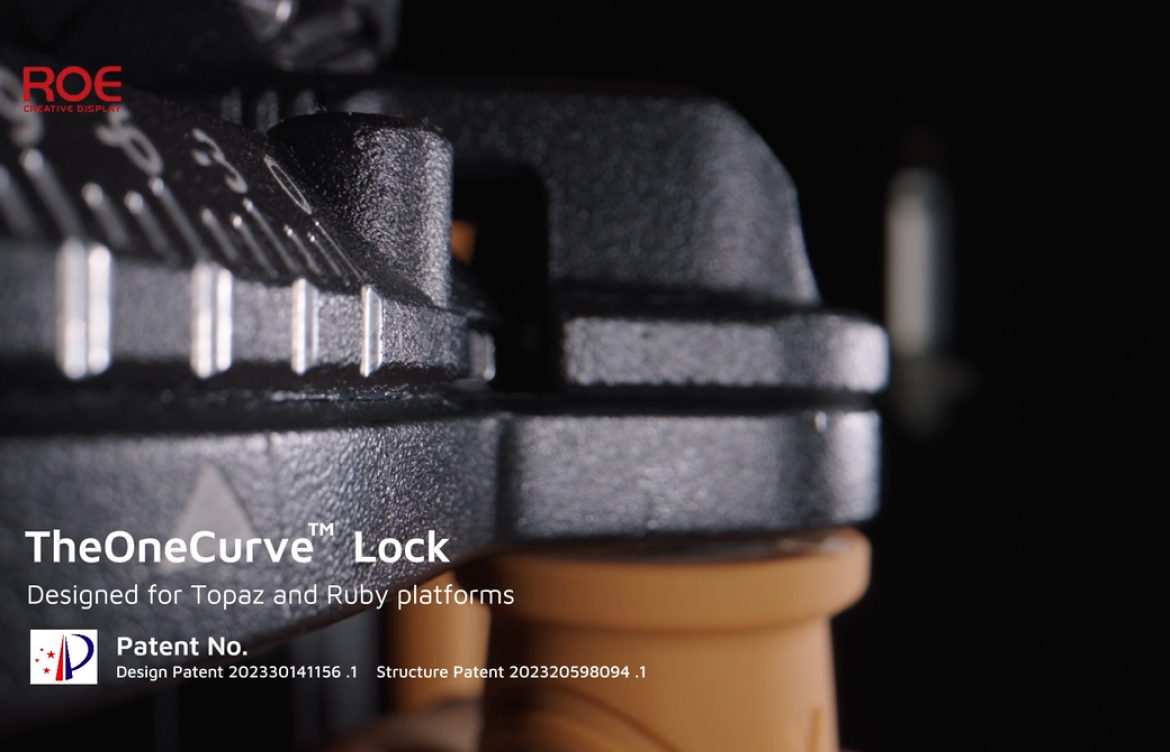

TheOneCurve™ Lock

  • Position with precision as exact as 1 degree (1 degree)
  • Marketing leading technology (The 1st)
  • Supreme curving smoothness (Level 1)
topaz series

Synergy and High-Effective

Compatible with Topaz series

The Topaz Curve (TP-C for short), Topaz Cube (TP-B for short), and Topaz panels are compatible. Combining both LED panels on one wall, you can create any perfect shape.

Complementary Curves and Cubes

Get creative with Topaz and add curves, 90 degree angles and cubes to your designs.

topaz curve

Topaz Curve (TP-C)

Topaz Curve (TP-C for short) panels are well-designed with multifunction handles and  offer significant curving options. You can create curves up to 20~30 degrees. The bending is divided into 20~30 small steps to guarantee a smooth and even look.

Request a demo

Create smooth and flawless curves

Unleash your creative ideas with Topaz

Seamless curving in -30 to +30 degree curves

topaz cube

Topaz Cube (TP-B)

The Topaz Cube (TP-B for short) elements allow for easy construction of 90 degree corners, 4-sided columns or even 6-sided cubes. The separate building elements can be combined with the regular Topaz modules.

Contact us now

Sharp 90-degree angles can be realised

Create cubes or square columns

Topaz cube enables a myriad of creative designs

Application Fields

Concerts

Corporate Events

Exhibitions

Specs

Download All Specs
TP1.5
TP1.9
TP-C1.9
TP-B1.9
TP2.2
TP-C2.2
TP-B2.2
TP2.6
TP-C2.6
TP-B2.6
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • TP1.5
  • 1.56mm
  • 4 in 1 common cathode
  • 1500nits
  • 500mm x 500mm x 73mm
    19.7” x 19.7” x 2.87”
  • 320 x 320
  • 8.16kg | 17.99lbs
  • 160W / 80W
  • 545 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • TP1.9
  • 1.95mm
  • 4 in 1 common anode
  • 1500nits
  • 500mm x 500mm x 73mm
    19.7” x 19.7” x 2.87”
  • 256 x 256
  • 8.3kg | 18.3lbs
  • 140W / 70W
  • 480 / 220
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 15bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • TP-C1.9
  • 1.95mm
  • 4 in 1 common anode
  • 1500nits
  • 500mm x 500mm x 108mm
    19.7” x 19.7” x 4.25”
  • 256 x 256
  • 8.5kg | 18.74lbs
  • 140W / 70W
  • 480 / 220
  • Solid
  • Rear
  • Concave 20° ~ Convex 20°
  • 140°
  • 140°
  • 7680Hz
  • 15bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • TP-B1.9
  • 1.95mm
  • 4 in 1 common anode
  • 1500nits
  • 500mm x 500mm x 72.19mm
    19.7” x 19.7” x 2.84”
  • 256 x 256
  • 8.9kg | 19.62lbs
  • 140W / 70W
  • 480 / 220
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 15bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 16 panels
  • 12 panels
  • TP2.2
  • 2.23mm
  • SMD 1212 Black
  • 1500nits
  • 500mm x 500mm x 73mm
    19.7” x 19.7” x 2.87”
  • 224 x 224
  • 8kg | 17.64lbs
  • 160W / 80W
  • 545 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 15bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • TP-C2.2
  • 2.23mm
  • SMD 1212 Black
  • 1500nits
  • 500mm x 500mm x 108mm
    19.7” x 19.7” x 4.25”
  • 224 x 224
  • 8.4kg | 18.52lbs
  • 160W / 80W
  • 545 / 250
  • Solid
  • Rear
  • Concave 30° ~ Convex 30°
  • 140°
  • 140°
  • 7680Hz
  • 15bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • TP-B2.2
  • 2.23mm
  • SMD 1212 Black
  • 1500nits
  • 500mm x 500mm x 72.19mm
    19.7” x 19.7” x 2.84”
  • 224 x 224
  • 9.08kg | 20.02lbs
  • 160W / 80W
  • 545 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 15bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 16 panels
  • 12 panels
  • TP2.6
  • 2.604mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 73mm
    19.7” x 19.7” x 2.87”
  • 192 x 192
  • 8kg | 17.64lbs
  • 140W / 70W
  • 480 / 220
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 15bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • TP-C2.6
  • 2.604mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 108mm
    19.7” x 19.7” x 4.25”
  • 192 x 192
  • 8.3kg | 18.3lbs
  • 140W / 70W
  • 480 / 220
  • Solid
  • Rear
  • Concave 30° ~ Convex 30°
  • 140°
  • 140°
  • 7680Hz
  • 15bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 20 panels
  • 12 panels
  • TP-B2.6
  • 2.604mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 72.19mm
    19.7” x 19.7” x 2.84”
  • 192 x 192
  • 9.08kg | 20.02lbs
  • 140W / 70W
  • 480 / 220
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 140°
  • 7680Hz
  • 15bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, CB, ETL, FCC, UKCA, WEEE
  • 16 panels
  • 12 panels
All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.
