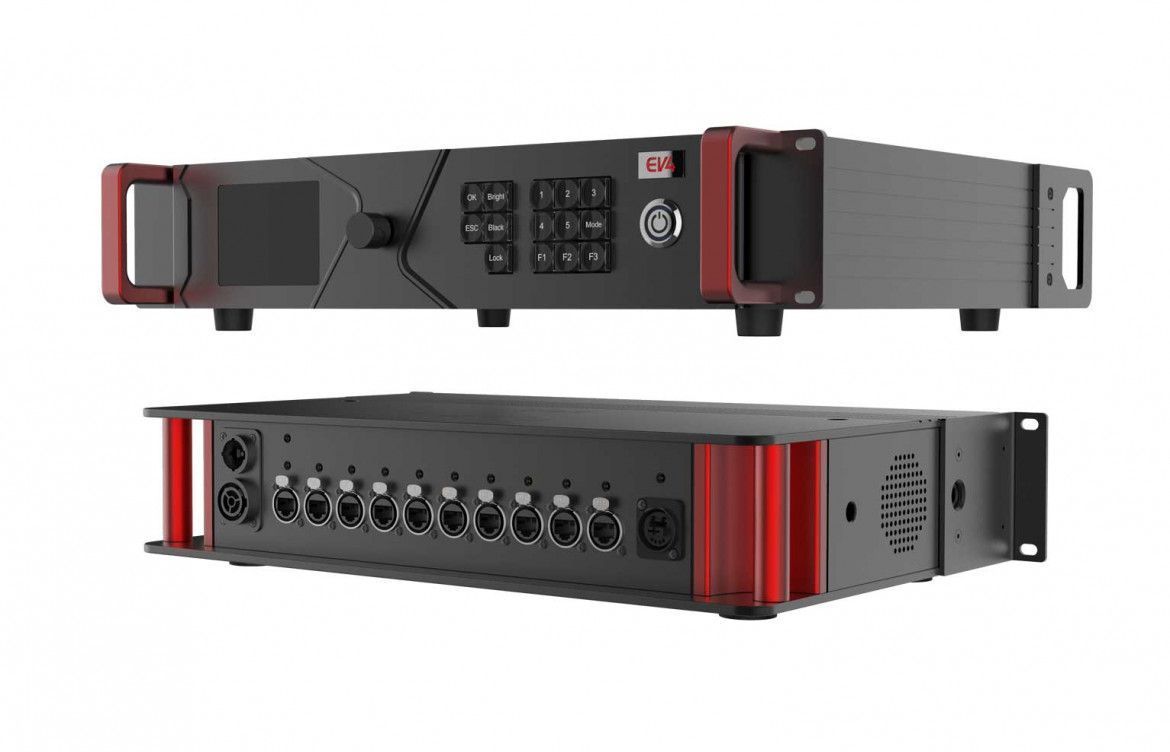

eV2 and eV4 LED Processing Platform

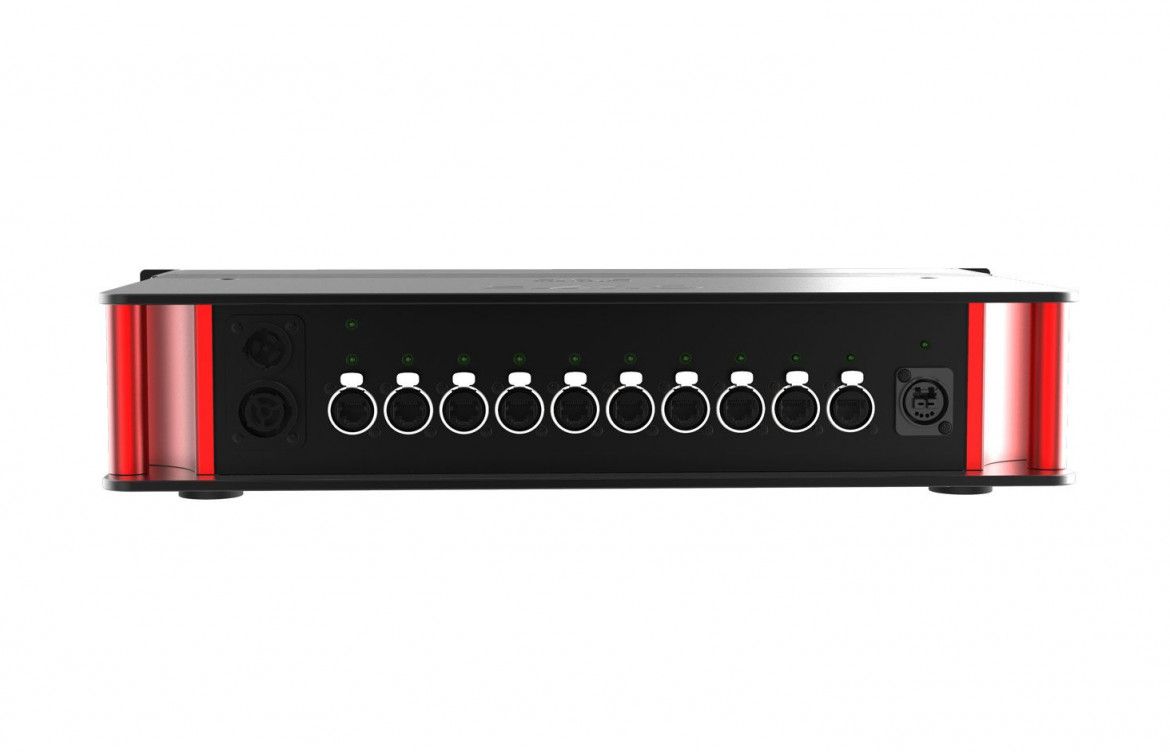

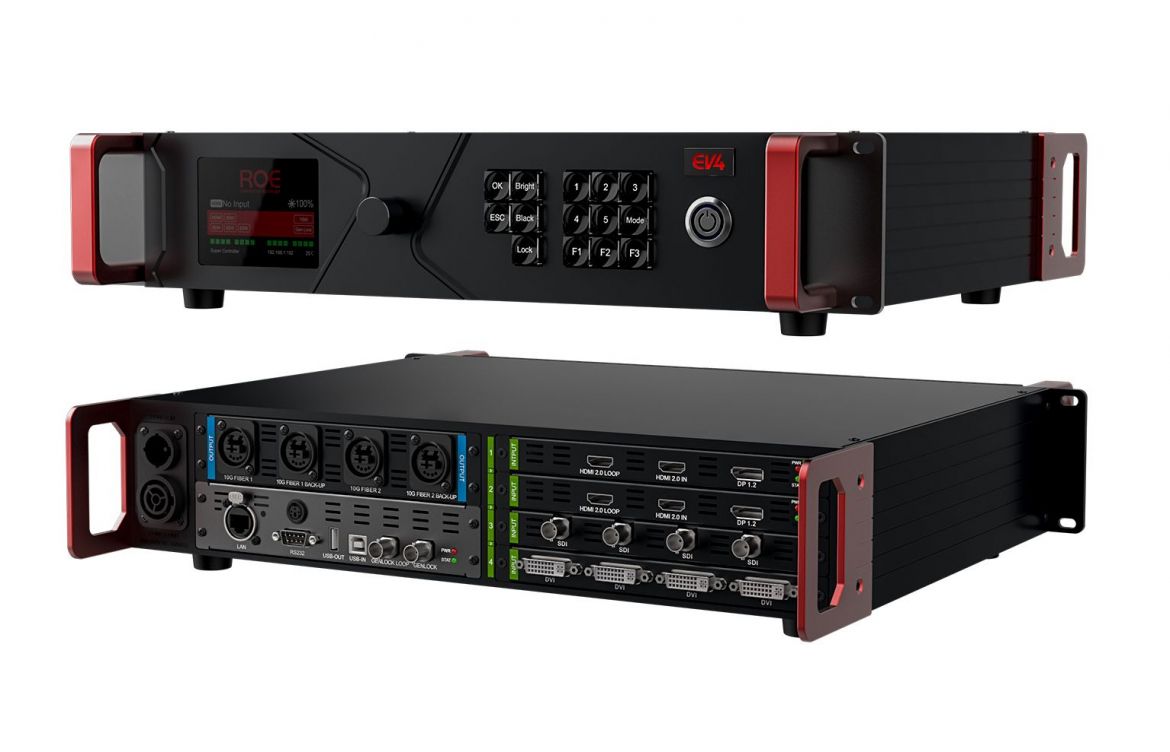

Both the eV2 and eV4 LED processors enable next generation image display and can handle 4K resolution display on a 60Hz frame rate, thus creating an outstanding image performance. Offering 10-bit per color output, the eV4processor supports real HDR to achieve striking visuals. The eV4 Processor features an integrated image processor, processor redundancy, 4K HDR and is the first processor to combine 4K with a fiber output. The Fiber Distributor eVX10 enables long-distance signal transmission.
eV2 and eV4 - Next generation processing
The eV2 and eV4 LED processors feature an integrated image processor, processor redundancy, 4K HDR. The Fiber Distributor eVX10 enables long-distance signal transmission. Offering 10-bit per color output, the eV4processor supports the HDR standard to achieve striking visuals.
eV4 specs
eV2 and eV4 support 4K
Flexible integrated image processor
Key functions
i-Set – Intuitive programming
Using the i-set software settings makes programming your project a breeze. With more standard pre-sets and easy mapping functionality, you have the freedom to create spectacular projects. The easy navigation and LCD read-out make menu selection intuitive and easy.
LED Processing Platforms
- Title
- Inputs
- Support input resolution 8 bit
- 10 bit
- Output ports
- Fiber
- Control ports
- Loading capacity
- Max width/height
- Splice function
- Zoom function
- Brightness adjustment
- Chromaticity adjustment
- Gray scale at low brightness
- Pip function support
- 3D display
- GEN lock
- GEN lock loop
- Power in
- Weight
- Height
- Max output per port
- Compatible with
- Power consumption
- eV4
- 1 x HDMI2.0, 4 x 3G-SDI, 1 x DP1.2, 4 x DVI
- 4096 x 2160 60Hz
- 4096 x 2160 60Hz
- 4 x 10G fiber
- 4 x 10G single mode / 40 RJ45 / 4 EVX10 distributor
- Artnet port, DMX control supported / 3 x USB2.0 B (F) / 2 x USB2.0 A (F)
- 8,3 Million pixels
- 8192/8192
- Y
- Y
- Y
- Y
- Y
- Y
- Y
- Y
- Y
- Neutrik True 1
- 9,64 kg
- 2U
- 655360 px @60Hz, 8 bit
- All types, optical fiber
- 150w
- eV2
- 1 x HDMI2.0, 1 x 12G-SDI, 1 x DP1.2
- 3840 x 2160 60 Hz
- 3840 x 2160 60 Hz
- 10 x 1G Ethernet, 1 x 10G fiber
- 1 x 10G fiber
- 6.55 Million pixels
- 8192/8192
- Y
- Y
- Y
- Y
- Y
- Y
- Y
- Y
- Y
- Neutrik True 1
- 9,64 kg
- 2U
- All types, optical fiber
- 150W
