Sierra
High-Efficiency LED solution
Sierra, features state-of-the-art common cathode flip-chip 4-in-1 LED technology in a mere 1.2 mm pixel pitch. Featuring a standard 16:9 aspect ratio, Sierra delivers reduced reflection, striking contrast, and an impeccably uniform black surface. A high-efficiency power supply reduces Sierra'spower consumption by 40%. The resulting low operating temperatures enhance color performance and significantly extend the panels' lifespan.
The Sierra LED panels are ideal for system integration, these innovative LED panels will excel in any bright environment where high contrast is essential and where exceptional visual performance is paramount, like broadcast studios, auditoria and corporate environments.
Advanced 4-in-1 Flip-Chip LED Technology
Sierra’s 4-in-1 LEDs with anti-glare surface treatment deliver deeper blacks and superior contrast, making it ideal for bright environments requiring high visual clarity.
Optimized for In-Camera Performance
With its low-scan rate design, reducing on-camera artifacts, Sierra is perfect for broadcast studios, TV stations, and other on-camera applications.
Energy Efficiency Redefined
Utilizing common cathode design and flip-chip LEDs, Sierra achieves up to 40% energy savings, resulting in lower heat generation. The stable, low operating temperatures of the LED panel enhance color performance and significantly prolong its lifespan.
Precision Alignment for Seamless Displays
With a slim profile of just 55mm, Sierra panels combine modern elegance with functionality. Featuring a standard 16:9 aspect ratio and dimensions of 600mm x 337.5mm, they are designed for seamless integration. The high-precision mounting frame ensures effortless installation, making them a perfect fit for any space.
Anti-Reflection Technology
Supporting both COB and SMD LED modules, Sierra excels in diverse environments, with its superior anti-reflection performance.A special deep black surface minimizes reflection, ensuring superior visuals in camera-focused applications.
Flexible 16:9 Display Configuration
Designed for native 16:9 aspect ratios, Sierra can be configured into various sizes, including widescreen options, offering unmatched versatility for any application.
Download Sierra Brochure
Sierra Key Features
Specs
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency
- Serviceability
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- IP Rating
- Sierra
- 1.25mm
- Flip chip 4 in1 LED
- 1000nits
- 600mm x 337.5mm x 29.9mm
23.62” x 13.29” x 1.18” - 480 x 270
- 5.68kg | 12.52lbs
- 100W / 50W
- 340 / 170
- Solid
- Front
- 140°
- 160°
- 3840Hz
- 15bit
- 40
Application Fields
Broadcast
Corporate
Immersive Spaces
Auditoria

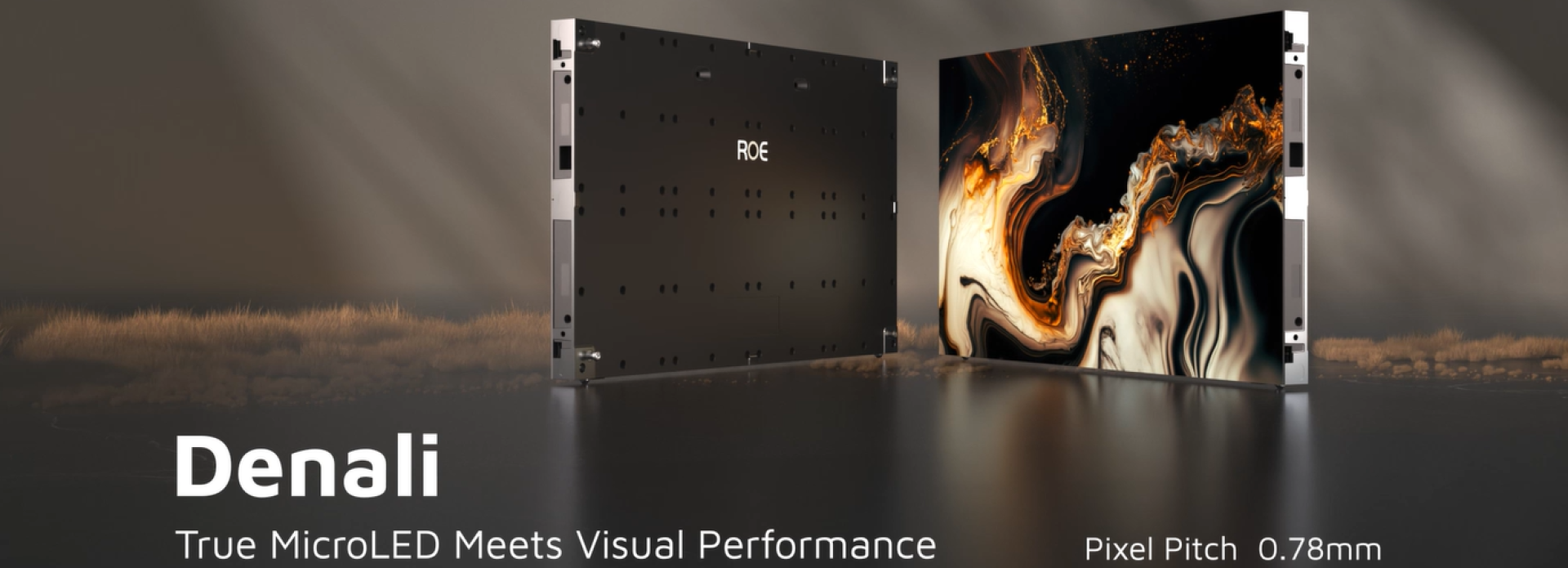

Denali
