Amber

Fine pitch. Excellent visuals.

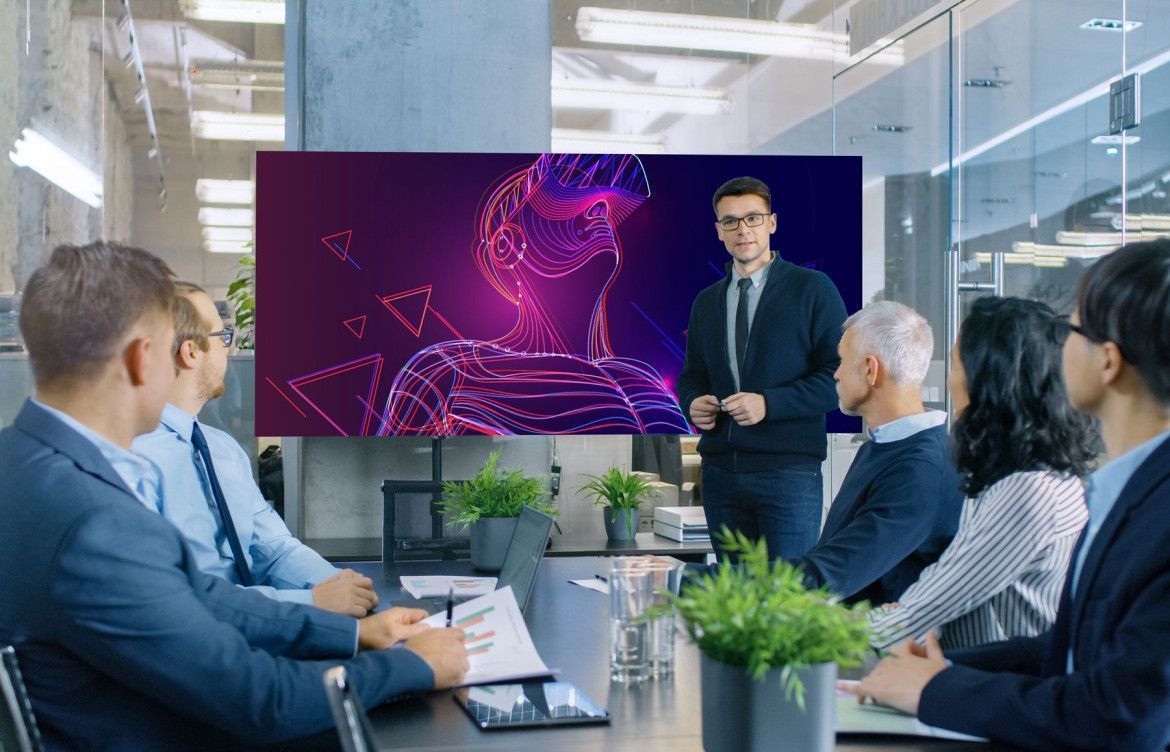

AV integration with fine pitch video displays for demanding applications like corporate boardrooms, broadcast suites or control rooms just got easier. The Amber LED platform offers sophisticated NPP LED screens for environments where excellent visuals count.

Request a demo

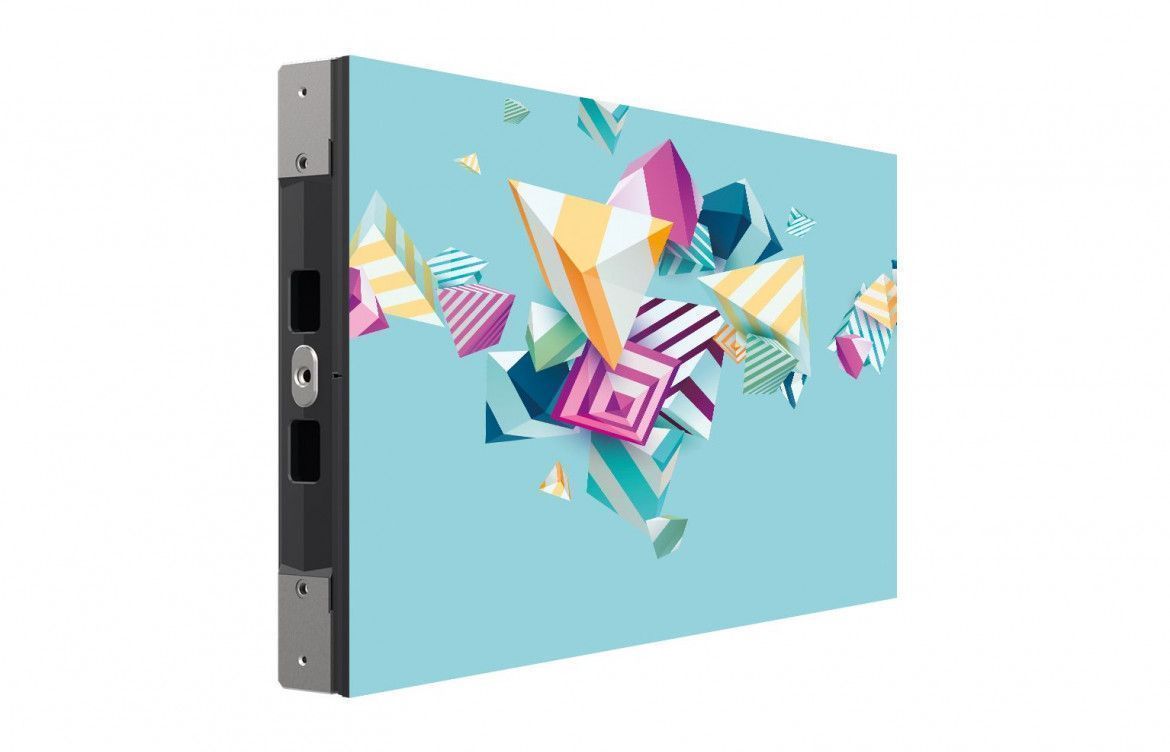

Sophisticated fine pitch LED screens

The Amber LED panels are developed to play into the demands for permanent video installations.
Uncomplicated installation, adaptable design, easy low-key and low-cost maintenance go hand-in with high-end performance and unequaled visual qualities.

Perfection in visual performance

The Amber LED panels have excellent visual performance due to the high contrast and robust 4in1 LEDS, guaranteeing flawless image performance in all circumstances. The resulting video screen boasts a 99% color cover BT.709 and 95% color cover DCI-P3 for broadcast requirements, avoiding the interference lines.

A Sustainable and Durable Solution

With its energy-saving power unit and high-quality components, the Amber LED panel ensures years of easy operation and stable visual excellence.

Low cost-of-ownership

Using the Amber LED panels servicing and maintenance is easy. No special trained staff is needed for the basic operation and servicing of the video screen. The modules have front service for easy replacement and the modular design saves on spare parts, reducing the maintenance costs.

Flexible mounting possibilities

Create video walls in any environment or on any wall type. The Amber mounting frame is a dedicated frame with narrow tolerances to create a flawless LED canvas for the fine pitch LED panels. The LED modules are mounted from the front side, using a special lock that keeps your LED modules in pristine conditions.

Future-ready HDR LED platform

The Amber LED panels support HDR technology resulting in excellent graphic quality with added greyscales and excellent color depth. In combination with a selection of fine pitch LED solutions, ranging from 0,9375 to 1,875, a native 4K 16:9 panel resolution and a unique 8K processor, this screen is ready for future requirements.

Visual Exellence. Made to Last

Amber Indoor LED

The Amber LED panels are out of the standard league of fixed install products, based on profound experience. The Amber LED modules are equipped with robust IM components that are designed and made to last. This means your LED performance is flawless from the start and will keep that way – no matter how often you’ll use it.

Download Brochure

Download Brochure

Amber Key Features

HDR technology
Slim-line panel design
Adjustable mounting frame
Front service
Modular design-saves on spare parts
16:9 ratio in panel design. Native 4K
Fine pixel pitch 0.9, 1.2, 1.5, 1.8
Extended LED lifecycle, energy saving and efficient heat-dissipation

Specs

Download All Specs
AB1.5
AB1.8
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • AB1.5
  • 1.5625mm
  • 4 in 1 LED
  • 800nits
  • 600mm x 337.5mm x 55mm
    23.6” x 13.2” x 2.1”
  • 384 x 216
  • 8.5kg | 18.7lbs
  • 180W / 90W
  • 615 / 285
  • Solid
  • Front
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/18
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC
  • AB1.8
  • 1.875mm
  • SMD 1010
  • 800nits
  • 600mm x 337.5mm x 55mm
    23.6” x 13.2” x 2.1”
  • 320 x 180
  • 8.5kg | 18.7lbs
  • 170W / 85W
  • 580 / 270
  • Solid
  • Front
  • 140°
  • 160°
  • 3840Hz
  • 15bit
  • 1/18
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC
Compare products
Comparison
<< product.title >>
  • Title

Application Fields

  • Broadcast
  • Cinema
  • Corporate
  • Controlroom
  • Boardroom

Accessories

Brompton

Data Cable

Power Cable
Amber Horizontal Bar

Horizontal Bar
Amber Vertical Bar

Vertical Bar
Dave Bateman

"The requirements for our installation were challenging due to extreme sonic vibrations, the angled side-wings and gaps for the audio systems. Meeting our expectations and standards the ROE Visual Amber LED screen provided the perfect solution, resulting in a  spectacular screen."

Dave Bateman Bateman Consulting Ltd
